| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09185147924 |
| Color: | Gray |
| Series: | SEK Standard |
| Housing Material: | Plastic |
| Number of Contacts: | 14 |
| Number of Rows: | 2 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Noble Metal Over Nickel, Tin Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 2.54 mm |
| IP Rating: | IP20 |
| Mount Angle: | Straight |
| Tail Length: | 2.9 mm |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 1 A |
| Voltage Rating: | 1 kV |
| SKU: | HRT09185147924 |

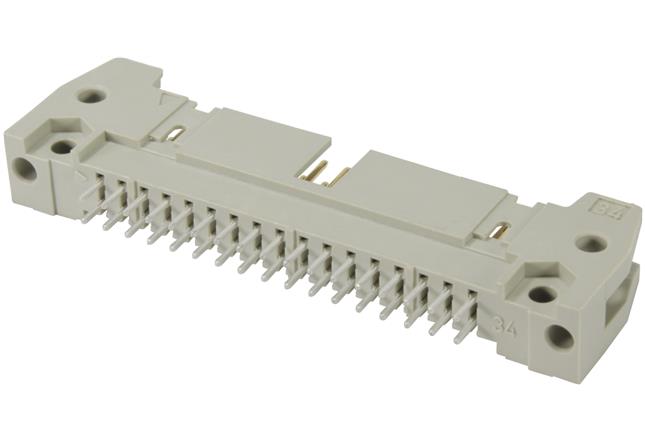

09185147924
Specifications
Detailed Description
The SEK Standard Male Connector is a reliable and efficient component for your PCB to cable connections. Made of durable thermoplastic resin (PBT) in a sleek beige color, this connector offers secure wave soldering termination for a seamless assembly process. With a high current rating of 1A and 14 contacts, it ensures stable and uninterrupted power transmission. The copper alloy contacts with tin over nickel plating guarantee excellent conductivity and corrosion resistance. Operating smoothly in temperatures ranging from -55°C to 125°C, this connector is suitable for a wide range of applications. Its straight mount angle and 2.54mm pitch make installation easy and precise. UL 94V-0 rated for flammability, it meets stringent safety standards. Trust in the SEK Standard Male Connector for superior performance in your electronic designs.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
