| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09185166926 |
| Color: | Gray |
| Series: | SEK Standard |
| Housing Material: | Plastic |
| Number of Contacts: | 16 |
| Number of Rows: | 2 |
| Termination Method: | Wire Wrap |
| Contact Material: | Copper Alloy |
| Contact Plating: | Noble Metal Over Nickel, Tin Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 2.54 mm |
| IP Rating: | IP20 |
| Mount Angle: | Right Angle |
| Tail Length: | 15 mm |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 1 A |
| Voltage Rating: | 1 kV |
| SKU: | HRT09185166926 |
09185166926
Specifications
Detailed Description

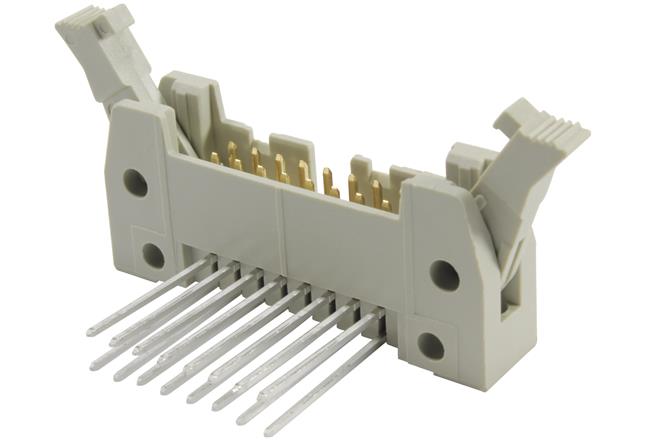

The SEK Standard Connector, SKU 09185166926, offers reliable PCB to cable connectivity in industrial applications. Featuring a male connector with 16 contacts, it is constructed from durable beige thermoplastic resin (PBT) for long-lasting performance. With a wrap termination method and a rated current of 1A, this connector ensures secure and efficient power transmission. Designed for angled mounting with a right-angle tail, it is suitable for space-restricted installations. The connector is compliant with UL 94V-0 flammability standards and has a wide operating temperature range from -55°C to 125°C, making it ideal for harsh environments. Trusted for its quality and performance, the SEK Standard Connector is a crucial component in any PCB assembly project.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
