| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09185167329 |
| Color: | Gray |
| Series: | SEK Low-profile |
| Gender: | Male |
| Housing Material: | Plastic |
| Number of Contacts: | 16 |
| Number of Rows: | 2 |
| Termination Method: | Press-Fit |
| Contact Material: | Copper Alloy |
| Contact Plating: | Nickel, Noble Metal Over Nickel |
| Maximum Operating Temperature: | 105 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 2.54 mm |
| IP Rating: | IP20 |
| Mount Angle: | Straight |
| Tail Length: | 5.5 mm |
| Mating Cycles: | 50 cycle |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 1 A |
| Voltage Rating: | 1 kV |
| SKU: | HRT09185167329 |
09185167329
Specifications
Detailed Description

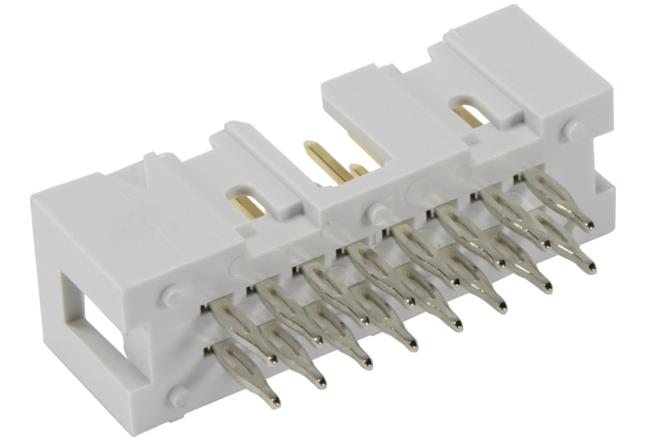

SEK Low-profile Connector, SKU 09185167329, is a durable and efficient male connector designed for PCB to cable connections. Made of high-quality thermoplastic resin (PBT) in a sleek beige finish, it offers reliable performance in a wide temperature range from -55°C to 105°C. With 16 contacts and a press-in termination method, it ensures secure and stable connections, rated for a current of 1A and voltage of 1kV. Featuring a straight mount angle and 2.54mm pitch, it is perfect for board-to-board PCB assemblies. The connector's IP20 rating guarantees protection against dust and solid particles, while its UL 94V-0 flammability rating ensures safety. Suitable for various applications in electronics and telecommunications, the SEK Connector is a dependable choice for your connectivity needs.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
