| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09185167911 |
| Color: | Gray |
| Series: | SEK Standard |
| Housing Material: | Plastic |
| Number of Contacts: | 16 |
| Number of Rows: | 2 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Noble Metal Over Nickel, Tin Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 2.54 mm |
| IP Rating: | IP20 |
| Mount Angle: | Right Angle |
| Tail Length: | 4.5 mm |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 1 A |
| Voltage Rating: | 1 kV |
| SKU: | HRT09185167911 |
09185167911
Specifications
Detailed Description

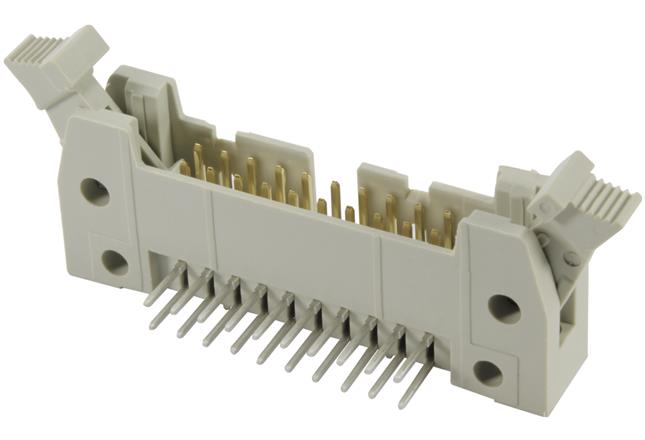

The SEK Standard Male Connector is a reliable and durable solution for PCB to cable connections. Made of high-quality thermoplastic resin (PBT) in a sleek beige finish, this connector features wave soldering termination for easy installation. With a rated current of 1A and 16 contacts, it ensures efficient power transmission. The connector is designed for optimal performance in a wide temperature range, from -55°C to 125°C, making it suitable for various environments. Its IP20 rating provides protection against dust and debris, while the UL 94V-0 flammability rating ensures safety. With a right-angle mount angle and a tail length of 4.5mm, it offers flexibility in installation. Trust in the SEK Standard Male Connector for seamless and secure connectivity in your electronic applications.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
