| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09185205913 |
| Color: | Gray |
| Series: | SEK Standard |
| Housing Material: | Plastic |
| Number of Contacts: | 20 |
| Number of Rows: | 2 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Noble Metal Over Nickel, Tin Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 2.54 mm |
| IP Rating: | IP20 |
| Mount Angle: | Right Angle |
| Tail Length: | 2.9 mm |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 1 A |
| Voltage Rating: | 1 kV |
| SKU: | HRT09185205913 |
09185205913
Specifications
Detailed Description

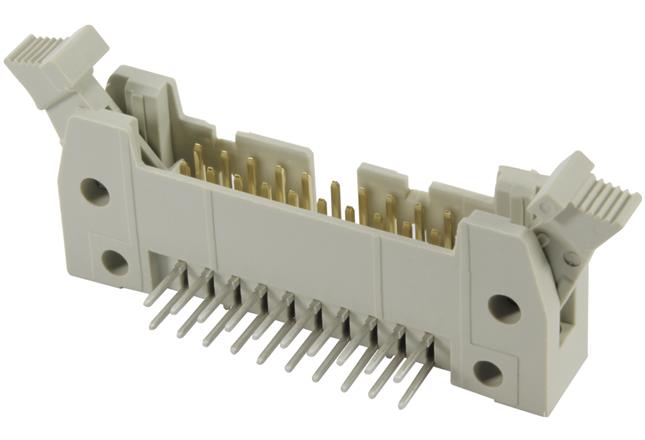

The SEK Standard Male Connector is a reliable and durable component for your PCB to cable connections. Made of high-quality thermoplastic resin (PBT) in a sleek beige color, this connector features 20 contacts for seamless data transmission. With a wave soldering termination method, installation is quick and efficient. Rated for a current of 1A and able to withstand temperatures ranging from -55°C to 125°C, it guarantees stable performance even in harsh environments. The copper alloy contacts with tin over nickel plating ensure excellent conductivity, while the IP20 rating offers protection against dust and debris. Designed for right-angle mounting with a tail length of 2.9mm, it's perfect for space-saving applications. UL 94V-0 rated for flammability, this connector is not only reliable but also safe. Trust in the SEK Standard Male Connector for all your connectivity needs.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
