| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09185206329 |
| Color: | Gray |
| Series: | SEK Low-profile |
| Gender: | Male |
| Housing Material: | Plastic |
| Number of Contacts: | 20 |
| Number of Rows: | 2 |
| Termination Method: | Press-Fit |
| Contact Material: | Copper Alloy |
| Contact Plating: | Nickel, Noble Metal Over Nickel |
| Maximum Operating Temperature: | 105 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 2.54 mm |
| IP Rating: | IP20 |
| Mount Angle: | Straight |
| Tail Length: | 5.5 mm |
| Mating Cycles: | 250 cycle |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 1 A |
| Voltage Rating: | 1 kV |
| SKU: | HRT09185206329 |
09185206329
Specifications
Detailed Description

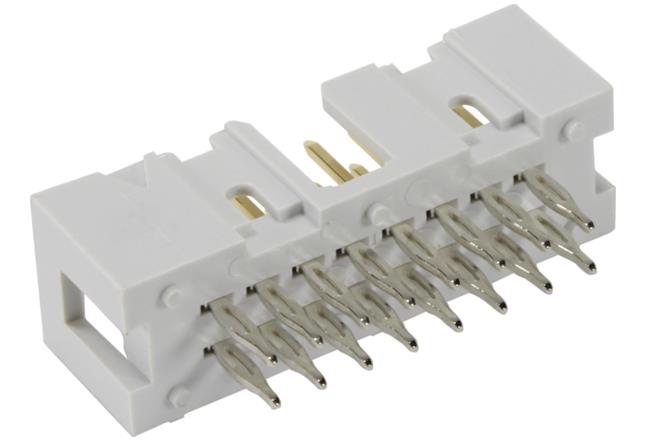

SEK Low-profile Connector, SKU 09185206329, offers reliable PCB to cable connection with its male press-in termination. Made of beige thermoplastic resin (PBT), this connector features 20 contacts in 2 rows, each plated with nickel and a noble metal for enhanced durability. With a rated current of 1A and a voltage rating of 1kV, it ensures efficient power transmission even in demanding environments. Operating between -55°C to 105°C, it guarantees performance in a wide range of conditions. Its straight mount angle and 2.54mm pitch make it easy to integrate into various systems. With a 250-cycle mating life and UL 94V-0 flammability rating, this connector is not only high-performing but also safe and long-lasting. Perfect for board-to-board and PCB applications, it meets the stringent standards of the industry. Elevate your connectivity with the SEK Low-profile Connector.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
