| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09185206921 |
| Color: | Gray |
| Series: | SEK Standard |
| Housing Material: | Plastic |
| Number of Contacts: | 20 |
| Number of Rows: | 2 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Noble Metal Over Nickel, Tin Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 2.54 mm |
| IP Rating: | IP20 |
| Mount Angle: | Right Angle |
| Tail Length: | 4.5 mm |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 1 A |
| Voltage Rating: | 1 kV |
| SKU: | HRT09185206921 |
09185206921
Specifications
Detailed Description

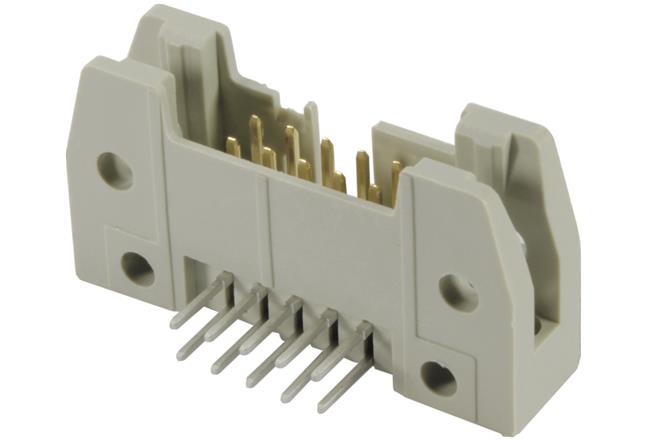

Introducing the SEK Standard Connector, a versatile component designed for seamless PCB to cable connections. With a durable thermoplastic resin (PBT) construction in a sleek beige finish, this male connector ensures reliable performance in a wide range of applications. Featuring wave soldering termination and 20 contacts, it offers easy installation and efficient connectivity. Rated for a current of 1A and with a pitch of 2.54mm, it meets the demands of modern electronic systems. The copper alloy contacts with tin over nickel plating guarantee excellent conductivity and corrosion resistance. With a wide operating temperature range from -55°C to 125°C and a flammability rating of UL 94V-0, this connector is suitable for use in various environments. Trust in the SEK Standard Connector for high-quality, dependable connectivity solutions.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
