| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09185207324 |
| Color: | Gray |
| Series: | SEK Low-profile |
| Gender: | Male |
| Housing Material: | Plastic |
| Number of Contacts: | 20 |
| Number of Rows: | 2 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Noble Metal Over Nickel, Tin Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 2.54 mm |
| IP Rating: | IP20 |
| Mount Angle: | Straight |
| Tail Length: | 2.9 mm |
| Mating Cycles: | 50 cycle |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 1 A |
| Voltage Rating: | 1 kV |
| SKU: | HRT09185207324 |
09185207324
Specifications
Detailed Description

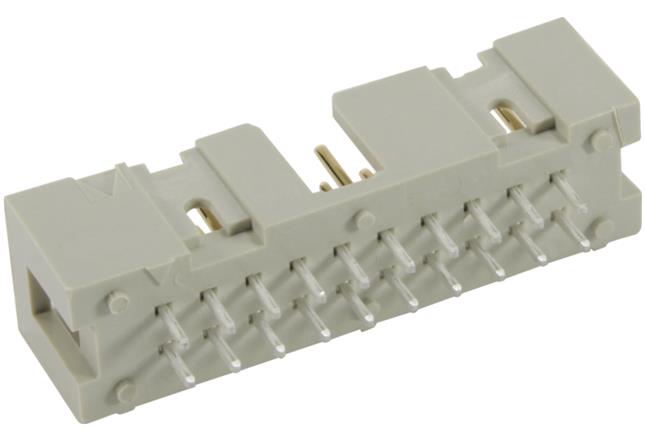

The SEK Low-profile Connector ( 09185207324) is a reliable solution for PCB to cable connections. Featuring a male connector with 20 contacts in 2 rows, this connector is made of durable thermoplastic resin (PBT) in a sleek beige color. With wave soldering termination and a current rating of 1A, it ensures secure and efficient performance. The contacts are constructed of copper alloy with tin over nickel and noble metal over nickel plating, guaranteeing excellent conductivity. Operating between -55°C to 125°C, it offers reliable performance in various environments. With a pitch of 2.54mm and straight mount angle, it is easy to install. This RoHS-compliant connector is ideal for applications in Board To Board PCB Connectors, Mezzanine & Board Stacking Connectors, and other electronic systems.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
