| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09185207922 |
| Color: | Gray |
| Series: | SEK Standard |
| Housing Material: | Plastic |
| Number of Contacts: | 20 |
| Number of Rows: | 2 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Noble Metal Over Nickel, Tin Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 2.54 mm |
| IP Rating: | IP20 |
| Mount Angle: | Straight |
| Tail Length: | 4.5 mm |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 1 A |
| Voltage Rating: | 1 kV |
| SKU: | HRT09185207922 |
09185207922
Specifications
Detailed Description

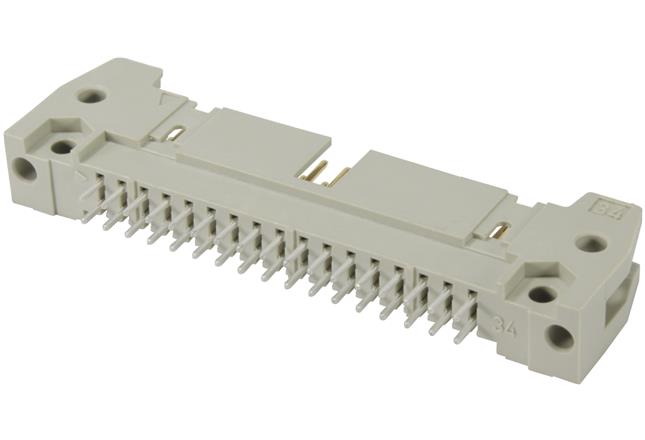

Introducing the SEK Standard Male Connector, a reliable and versatile component designed for seamless PCB to cable connections. Crafted from high-quality thermoplastic resin (PBT) in a sleek beige hue, this connector ensures durability and performance. With a wave soldering termination method, installation is a breeze. Featuring 20 copper alloy contacts with tin over nickel and noble metal plating, conductivity is optimized for a rated current of 1A and voltage rating of 1kV. Operating temperature ranges from -55°C to 125°C, making it suitable for a variety of environments. With a pitch of 2.54mm and IP20 rating, it guarantees secure and stable connections. The straight mount angle and 4.5mm tail length provide flexibility in placement. UL 94V-0 rated for flammability, it meets stringent safety standards. Ideal for use in hi-rel applications, this connector, with SKU 09185207922, is a crucial component in any PCB assembly project.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
