| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09185266911 |
| Color: | Gray |
| Series: | SEK Standard |
| Housing Material: | Plastic |
| Number of Contacts: | 26 |
| Number of Rows: | 2 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Noble Metal Over Nickel, Tin Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 2.54 mm |
| IP Rating: | IP20 |
| Mount Angle: | Right Angle |
| Tail Length: | 4.5 mm |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 1 A |
| Voltage Rating: | 1 kV |
| SKU: | HRT09185266911 |
09185266911
Specifications
Detailed Description

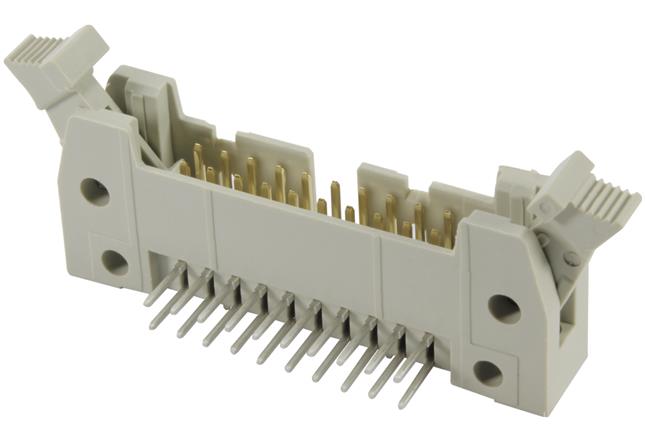

SEK Standard Connector ( 09185266911) offers reliable connectivity in electronic assemblies. This male connector features a durable thermoplastic resin (PBT) housing in a sleek beige finish, suitable for PCB to cable applications with wave soldering termination. With a high-rated current of 1A and 26 copper alloy contacts plated with Tin Over Nickel and Noble Metal Over Nickel, it ensures efficient power transmission. Operating temperature ranging from -55°C to 125°C, it guarantees performance in various environments. Its 2.54mm pitch, IP20 rating, and UL 94V-0 flammability rating make it ideal for industrial use. With a right-angle mount angle and 4.5mm tail length, it offers flexibility in installation. Perfect for high-quality PCB connections, this connector is a vital component in any electronic system.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
