| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09185266926 |
| Color: | Gray |
| Series: | SEK Standard |
| Housing Material: | Plastic |
| Number of Contacts: | 26 |
| Number of Rows: | 2 |
| Termination Method: | Wire Wrap |
| Contact Material: | Copper Alloy |
| Contact Plating: | Noble Metal Over Nickel, Tin Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 2.54 mm |
| IP Rating: | IP20 |
| Mount Angle: | Right Angle |
| Tail Length: | 15 mm |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 1 A |
| Voltage Rating: | 1 kV |
| SKU: | HRT09185266926 |
09185266926
Specifications
Detailed Description

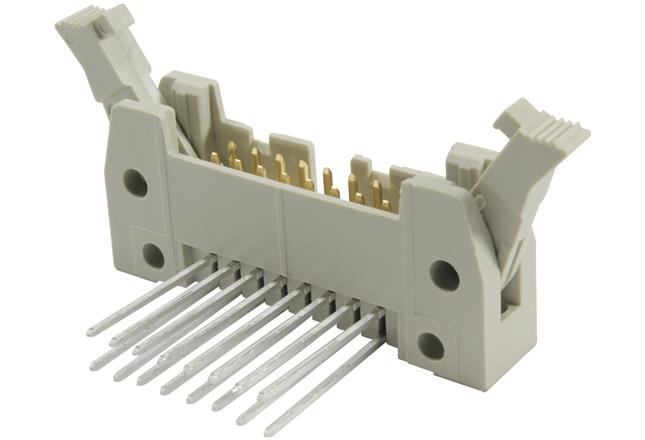

The SEK Standard Connector ( 09185266926) is a reliable solution for PCB to cable connections. This male connector features a durable thermoplastic resin housing in a sleek beige color, ensuring both strength and aesthetic appeal. With 26 contacts arranged in an angled, right angle configuration, it offers efficient signal transmission in tight spaces. The wrap termination method guarantees secure and stable connections, while the copper alloy contacts with tin over nickel plating ensure excellent conductivity and corrosion resistance. Rated for 1A current and 1kV voltage, this connector is suitable for a wide range of applications. Its IP20 rating and UL 94V-0 flammability rating provide peace of mind in terms of safety and reliability. Whether used in industrial machinery, telecommunications equipment, or consumer electronics, the SEK Standard Connector delivers high performance and longevity.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
