| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09185266927 |
| Color: | Gray |
| Series: | SEK Standard |
| Housing Material: | Plastic |
| Number of Contacts: | 26 |
| Number of Rows: | 2 |
| Termination Method: | Wire Wrap |
| Contact Material: | Copper Alloy |
| Contact Plating: | Noble Metal Over Nickel, Tin Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 2.54 mm |
| IP Rating: | IP20 |
| Mount Angle: | Straight |
| Tail Length: | 15 mm |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 1 A |
| Voltage Rating: | 1 kV |
| SKU: | HRT09185266927 |
09185266927
Specifications
Detailed Description

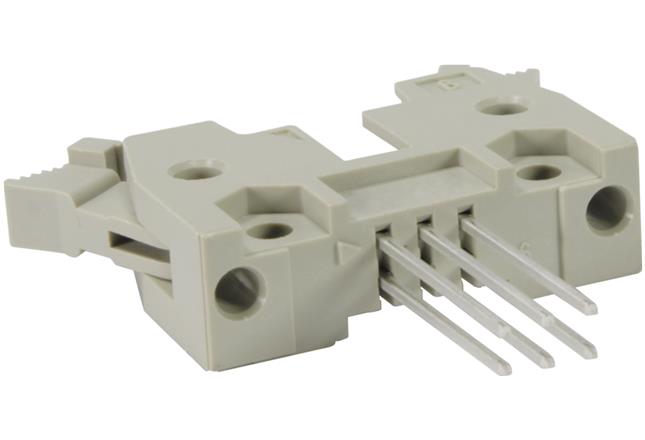

SEK Standard Connector ( 09185266927) is a reliable and efficient solution for PCB to cable connections. Designed for male connectivity, this connector features a durable thermoplastic resin (PBT) housing in a stylish Beige color. With a straight mounting angle and wire wrap termination method, it offers easy installation onto PCBs. The connector is rated for a maximum current of 1A and has 26 copper alloy contacts with Tin over Nickel and Noble Metal over Nickel plating, ensuring excellent conductivity and corrosion resistance. Operating temperature ranging from -55°C to 125°C, along with a voltage rating of 1kV, make it suitable for a wide range of applications. With an IP20 ingress protection rating and UL 94V-0 flammability rating, it guarantees safety and reliability in use. RoHS compliant and available in stock, the SEK Standard Connector is a must-have for your PCB interconnect needs. Explore its capabilities under the Connectors category.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
