| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09185267323 |
| Color: | Gray |
| Series: | SEK Low-profile |
| Gender: | Male |
| Housing Material: | Plastic |
| Number of Contacts: | 26 |
| Number of Rows: | 2 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Noble Metal Over Nickel, Tin Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 2.54 mm |
| IP Rating: | IP20 |
| Mount Angle: | Right Angle |
| Tail Length: | 2.9 mm |
| Mating Cycles: | 50 cycle |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 1 A |
| Voltage Rating: | 1 kV |
| SKU: | HRT09185267323 |

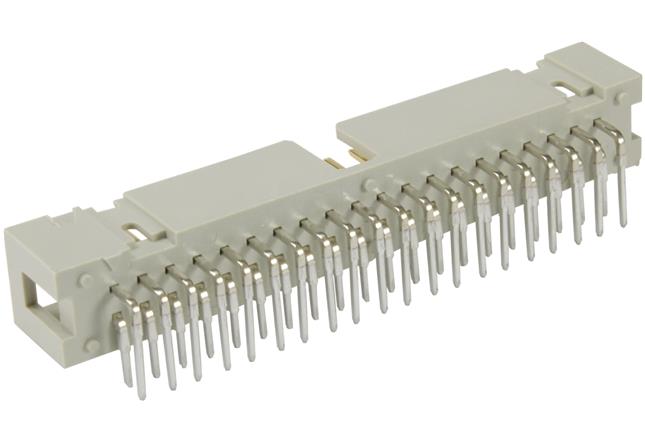

09185267323
Specifications
Detailed Description
Introducing the SEK Low-profile Connector, a versatile solution for seamless PCB to cable connections. This male connector, crafted from durable thermoplastic resin (PBT) in a sleek beige hue, offers reliable performance in a variety of applications. With 26 contacts spread across 2 rows, this connector ensures efficient data transmission. Its solder termination method guarantees a secure and stable connection, while the copper alloy contacts with tin over nickel plating provide excellent conductivity. Rated for a maximum current of 1A and voltage of 1kV, this connector operates flawlessly in temperatures ranging from -55°C to 125°C. Its IP20 rating and UL 94V-0 flammability rating ensure safety and compliance with industry standards. Perfect for board-to-board and mezzanine connections, the SEK Low-profile Connector is a dependable choice for your electronic projects.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
