| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09185267329 |
| Color: | Gray |
| Series: | SEK Low-profile |
| Gender: | Male |
| Housing Material: | Plastic |
| Number of Contacts: | 26 |
| Number of Rows: | 2 |
| Termination Method: | Press-Fit |
| Contact Material: | Copper Alloy |
| Contact Plating: | Nickel, Noble Metal Over Nickel |
| Maximum Operating Temperature: | 105 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 2.54 mm |
| IP Rating: | IP20 |
| Mount Angle: | Straight |
| Tail Length: | 5.5 mm |
| Mating Cycles: | 50 cycle |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 1 A |
| Voltage Rating: | 1 kV |
| SKU: | HRT09185267329 |
09185267329
Specifications
Detailed Description

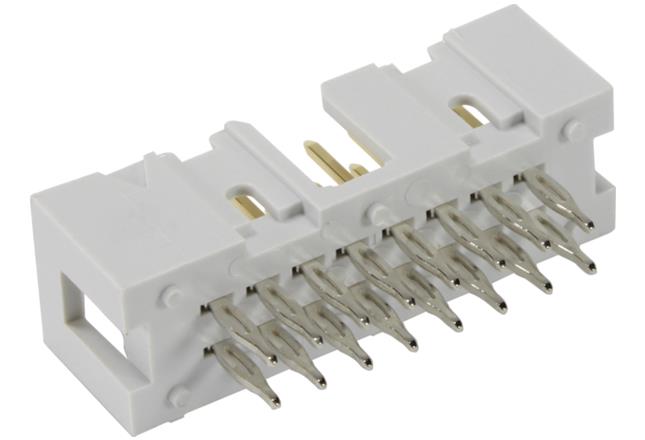

Introducing the SEK Low-profile Male Connector, a versatile and reliable component for your PCB to cable connections. Made from durable thermoplastic resin (PBT) in a sleek beige hue, this connector features press-in termination for easy installation. With a rated current of 1A and 26 contacts, it ensures efficient power and data transmission. The gray color and 2.54mm pitch make it compatible with a variety of systems, while its IP20 rating guarantees protection against dust and debris. Constructed with high-quality copper alloy contacts plated with nickel, this connector offers optimal conductivity and durability. Suitable for a wide range of applications, from consumer electronics to industrial machinery, the SEK Low-profile Male Connector is a must-have for your connectivity needs.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
