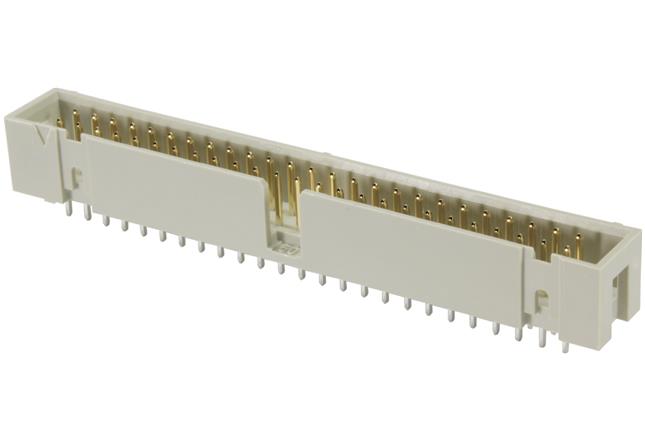

09185305324

HRT09185305324
Heilind Number:HRT09185305324
Manufacturer:HARTING
Manufacturer Number:09185305324
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

SEK-18 SV MA LP STR29 30P PLS4

More >>

Specifications

AttributeValue
Product Category:
PC Board Pin & Receptacle Connectors PCB Pin Headers
Manufacturer:HARTING
Manufacturer Part Number:HARTING 09185305324
Color:Gray
Series:SEK Low-profile
Housing Material:Plastic
Number of Contacts:30
Number of Rows:2
Termination Method:Solder
Contact Material:Copper Alloy
Contact Plating:Noble Metal Over Nickel, Tin Over Nickel
Maximum Operating Temperature:125 °C
Minimum Operating Temperature:-55 °C
Pitch:2.54 mm
Mount Angle:Straight
Tail Length:2.9 mm
Flammability Rating:UL 94V-0
Current Rating:1 A
Voltage Rating:1 kV
Part Aliases:
SKU:HRT09185305324

Detailed Description

The SEK-18 SV MA LP STR29 30P PLS4 ( 09185305324) is a reliable and high-performance connector designed for demanding applications. With a low-profile design and durable plastic housing, it offers both space-saving benefits and robust protection. Featuring 30 contacts in 2 rows, this connector is ideal for PCB applications. The solder termination method ensures secure and stable connections, while the copper alloy contacts with tin plating guarantee excellent conductivity. With a wide operating temperature range of -55°C to 125°C, it is suitable for use in extreme environments. The 2.54mm pitch and straight mount angle make it easy to integrate into various systems. UL 94V-0 rated for flammability, it meets strict safety standards. With a current rating of 1A and voltage rating of 1kV, it is suitable for a wide range of power and signal applications. Trust in the SEK-18 SV MA LP STR29 30P PLS4 for your connectivity needs.
