| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09185345323 |
| Color: | Gray |
| Series: | SEK Low-profile |
| Gender: | Male |
| Housing Material: | Plastic |
| Number of Contacts: | 34 |
| Number of Rows: | 2 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Noble Metal Over Nickel, Tin Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 2.54 mm |
| IP Rating: | IP20 |
| Mount Angle: | Right Angle |
| Tail Length: | 2.9 mm |
| Mating Cycles: | 250 cycle |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 1 A |
| Voltage Rating: | 1 kV |
| SKU: | HRT09185345323 |
09185345323
Specifications
Detailed Description

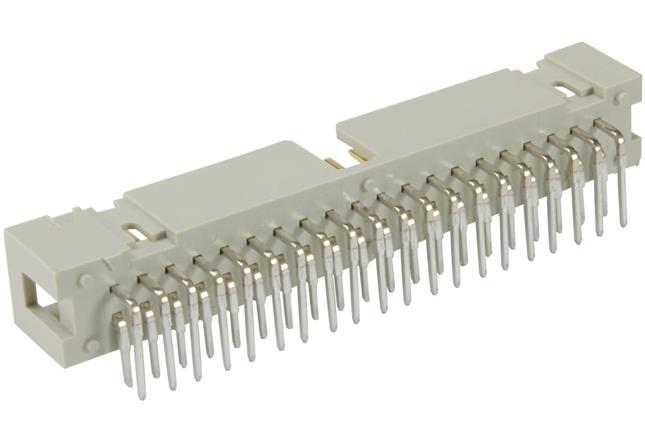

SEK Low-profile Connector, SKU 09185345323, is a high-quality male connector designed for seamless PCB to cable connections. Constructed from durable thermoplastic resin (PBT) in a sleek beige finish, this connector offers reliable performance in a wide range of applications. With 34 contacts arranged in 2 rows and a pitch of 2.54mm, it ensures efficient signal transmission. Featuring wave soldering termination and a maximum operating temperature of 125°C, it guarantees secure and stable connections even in demanding environments. With a current rating of 1A and voltage rating of 1kV, it meets stringent safety standards. RoHS compliant and with a flammability rating of UL 94V-0, it prioritizes environmental sustainability and safety. Perfect for use in board-to-board and mezzanine applications, the SEK Connector is a essential component for your connectivity needs.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
