| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09185345814 |
| Series: | SEK |
| Gender: | Female |
| Housing Material: | Plastic |
| Number of Contacts: | 34 |
| Number of Rows: | 2 |
| Termination Method: | IDC |
| Contact Material: | Copper Alloy |
| Contact Plating: | Noble Metal Over Nickel, Tin Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 1.27 mm, 2.54 mm |
| Housing Color: | Gray |
| Mating Cycles: | 250 cycle |
| Wire Size: | 28 - 26 AWG |
| Performance Level: | Class S4 |
| Current Rating: | 2.5 A |
| Voltage Rating: | 1 kV |
| SKU: | HRT09185345814 |
09185345814
Specifications
Detailed Description

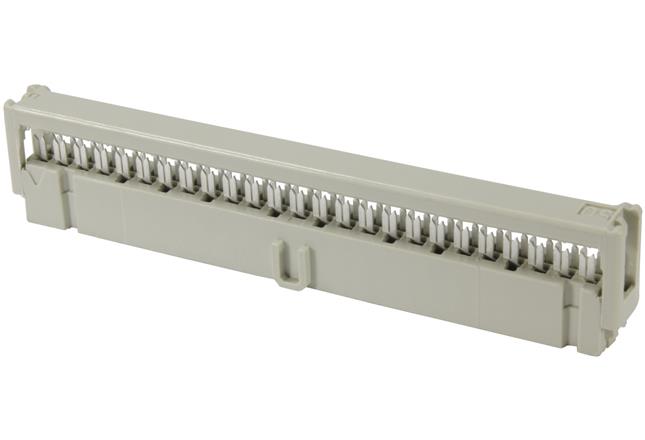

SEK Female Connector with Closed End Cover, 09185345814, offers reliable connectivity with a rated current of 2.5A. Constructed with durable thermoplastic resin (PBT) in a sleek beige finish, it features 34 contacts for efficient data transmission. Meeting Performance Level S4 standards, this connector is designed for high-performance applications. With a housing made of sturdy plastic and termination method using IDC, it ensures secure and stable connections. Contact material of Copper Alloy with Tin Over Nickel plating guarantees optimal conductivity. Operating temperature ranging from -55°C to 125°C, it is suitable for a wide range of environments. With a pitch of 2.54mm and 1.27mm, it accommodates various wire sizes (28-26 AWG) for versatile use. This SEK Female Connector is a reliable solution for your connectivity needs, whether in industrial, commercial, or residential settings.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
