| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09185346803 |
| Series: | SEK |
| Gender: | Female |
| Housing Material: | Plastic |
| Number of Contacts: | 34 |
| Number of Rows: | 2 |
| Termination Method: | IDC |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold Over Nickel, Tin Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 1.27 mm, 2.54 mm |
| Housing Color: | Gray |
| Mating Cycles: | 250 cycle |
| Wire Size: | 28 - 26 AWG |
| Performance Level: | Class II |
| Current Rating: | 2.5 A |
| Voltage Rating: | 1 kV |
| SKU: | HRT09185346803 |
09185346803
Specifications
Detailed Description

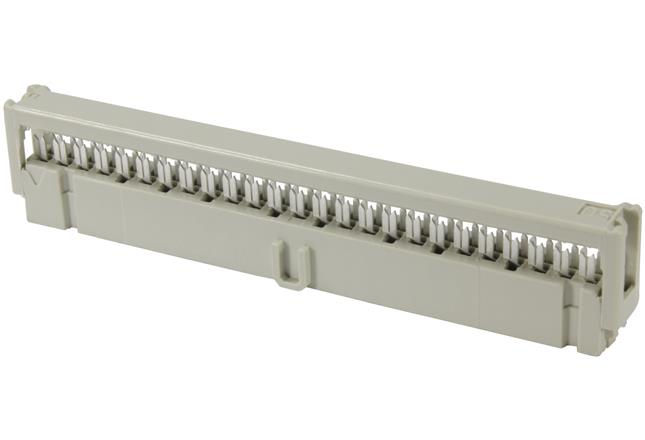

Introducing the SEK Female Connector, a high-performance component designed for seamless connectivity in electronic systems. With a rated current of 2.5A, this connector is suitable for a wide range of applications. Constructed with durable thermoplastic resin (PBT) in a sleek beige finish, it offers both reliability and aesthetic appeal. Featuring 34 gold-plated contacts and a performance level of 2, this connector ensures efficient signal transmission. Its IDC termination method allows for easy installation, while its wide operating temperature range of -55°C to 125°C guarantees functionality in various environments. Compliant with RoHS standards, the SEK Connector is not only high-quality but environmentally friendly. Perfect for use in FFC, FPC, and IDC ribbon cable assemblies, this product is a must-have for any electronics project.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
