| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09185346922 |
| Color: | Gray |
| Series: | SEK Standard |
| Housing Material: | Plastic |
| Number of Contacts: | 34 |
| Number of Rows: | 2 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Noble Metal Over Nickel, Tin Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 2.54 mm |
| IP Rating: | IP20 |
| Mount Angle: | Straight |
| Tail Length: | 4.5 mm |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 1 A |
| Voltage Rating: | 1 kV |
| SKU: | HRT09185346922 |

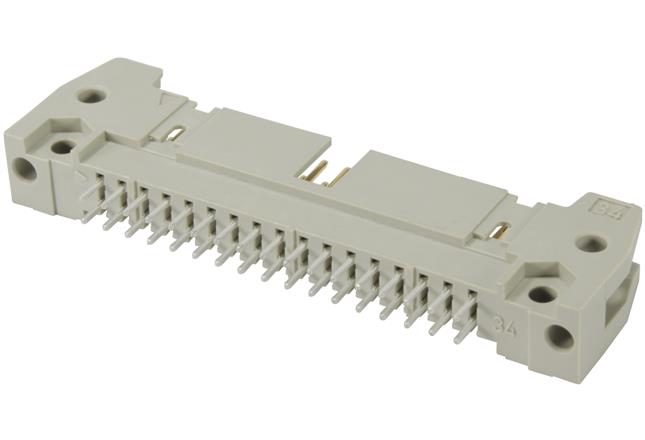

09185346922
Specifications
Detailed Description
SEK Standard Male Connectors are essential components for secure and efficient PCB to cable connections. Made from durable thermoplastic resin (PBT) in a sleek beige color, these connectors feature a wave soldering termination method for easy installation. With a high rated current of 1A, they ensure reliable power transmission. The 34 copper alloy contacts, plated with tin over nickel and noble metal over nickel, guarantee excellent conductivity and corrosion resistance. Operating in a wide temperature range from -55°C to 125°C, these connectors are suitable for diverse environments. Meeting IP20 standards for ingress protection, they offer added durability. With a pitch of 2.54mm and a straight mount angle, they provide a secure fit on PCBs. UL 94V-0 rated for flammability, they ensure safety in use. Perfect for industrial applications, these connectors are a dependable choice for your connectivity needs.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
