| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09185347922 |
| Color: | Gray |
| Series: | SEK Standard |
| Housing Material: | Plastic |
| Number of Contacts: | 34 |
| Number of Rows: | 2 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Noble Metal Over Nickel, Tin Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 2.54 mm |
| IP Rating: | IP20 |
| Mount Angle: | Straight |
| Tail Length: | 4.5 mm |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 1 A |
| Voltage Rating: | 1 kV |
| SKU: | HRT09185347922 |
09185347922
Specifications
Detailed Description

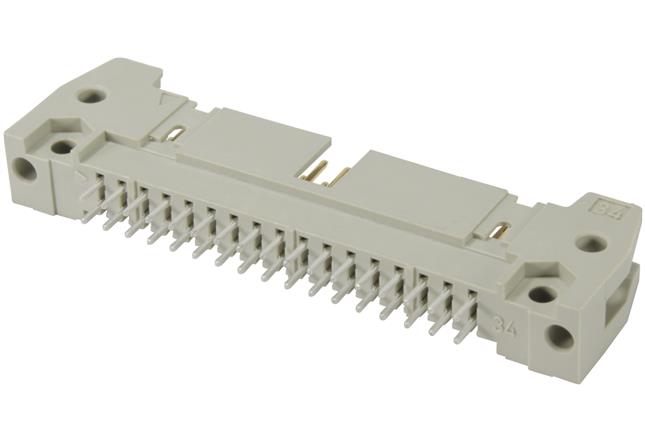

SEK Standard Connector, SKU 09185347922, offers reliable PCB-to-cable connectivity with its male thermoplastic resin (PBT) construction in beige. Featuring 34 contacts for seamless signal transmission, this connector is designed for wave soldering termination with a rated current of 1A. Its durable plastic housing and copper alloy contacts plated with tin over nickel ensure long-lasting performance even in harsh environments. With a temperature range of -55 to 125 °C and IP20 rating, it guarantees reliable operation in various conditions. The 2.54mm pitch, straight mount angle, and 4.5mm tail length make it easy to install, while its UL 94V-0 flammability rating provides added safety. Ideal for high-quality PCB applications, this connector is a must-have for any electronic project.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
