| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09185405814 |
| Series: | SEK |
| Gender: | Female |
| Housing Material: | Plastic |
| Number of Contacts: | 40 |
| Number of Rows: | 2 |
| Termination Method: | IDC |
| Contact Material: | Copper Alloy |
| Contact Plating: | Noble Metal Over Nickel, Tin Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 1.27 mm, 2.54 mm |
| Housing Color: | Gray |
| Mating Cycles: | 250 cycle |
| Wire Size: | 28 - 26 AWG |
| Performance Level: | Class S4 |
| Current Rating: | 2.5 A |
| Voltage Rating: | 1 kV |
| SKU: | HRT09185405814 |
09185405814
Specifications
Detailed Description

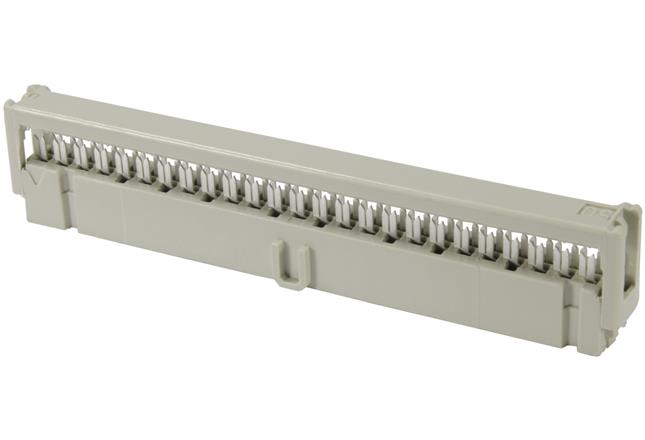

SEK Female Connector with Closed End Cover, SKU 09185405814, is a high-performance solution for secure and reliable connections in industrial applications. With a rated current of 2.5A, this connector is designed for optimal power transmission. Constructed with durable thermoplastic resin (PBT) in beige, it offers excellent mechanical strength and resistance to harsh environments. Featuring 40 contacts and a performance level of S4, it ensures efficient signal transfer. The IDC termination method and copper alloy contacts with tin over nickel plating guarantee easy and durable installation. With a wide operating temperature range of -55°C to 125°C, it is suitable for use in extreme conditions. Compliant with Class S4 standards, this connector is a dependable choice for demanding applications.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
