| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09185406813 |
| Series: | SEK |
| Gender: | Female |
| Housing Material: | Plastic |
| Number of Contacts: | 40 |
| Number of Rows: | 2 |
| Termination Method: | IDC |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold Over Nickel, Tin Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 1.27 mm, 2.54 mm |
| Housing Color: | Gray |
| Mating Cycles: | 250 cycle |
| Wire Size: | 28 - 26 AWG |
| Performance Level: | Class II |
| Current Rating: | 2.5 A |
| Voltage Rating: | 1 kV |
| SKU: | HRT09185406813 |
09185406813
Specifications
Detailed Description

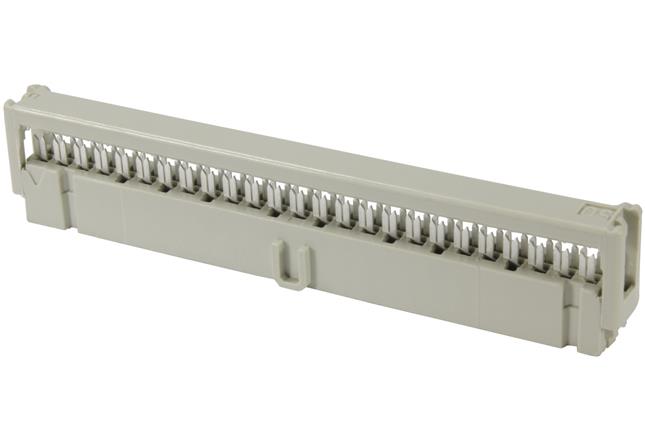

SEK Female Connector, SKU 09185406813, is a high-performance component designed for reliable electrical connections in industrial applications. With a current rating of 2.5A and 40 gold-plated contacts, it ensures efficient power transmission. The thermoplastic resin housing in beige offers durability and resistance to harsh operating conditions, with a wide temperature range from -55°C to 125°C. Featuring IDC termination for easy installation, this connector is suitable for use with 28-26 AWG wires. Compliant with RoHS standards and rated for 1kV, it guarantees safety and environmental responsibility. The SEK connector, part of a versatile series, is essential for secure and efficient cable connections in various electronic systems.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
