| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09185407922 |
| Color: | Gray |
| Series: | SEK Standard |
| Housing Material: | Plastic |
| Number of Contacts: | 40 |
| Number of Rows: | 2 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Noble Metal Over Nickel, Tin Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 2.54 mm |
| IP Rating: | IP20 |
| Mount Angle: | Straight |
| Tail Length: | 4.5 mm |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 1 A |
| Voltage Rating: | 1 kV |
| SKU: | HRT09185407922 |

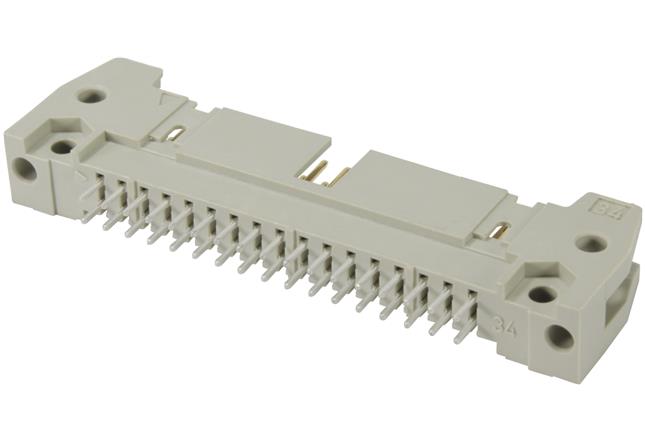

09185407922
Specifications
Detailed Description
Introducing the SEK Standard Connector, a versatile and reliable solution for PCB to cable connections. This male connector features a durable thermoplastic resin (PBT) housing in a sleek beige color, ensuring both strength and aesthetics. With 40 contacts and a 2-row design, it offers ample connectivity options. The wave soldering termination method guarantees secure and efficient assembly. Rated for a current of 1A and featuring copper alloy contacts with tin over nickel plating, this connector ensures optimal conductivity and longevity. Operating in temperatures ranging from -55°C to 125°C, it is suitable for a wide range of applications. With a pitch of 2.54mm and IP20 rating, it offers easy installation and protection against dust and debris. UL 94V-0 flammability rating further enhances safety. Trust the SEK Standard Connector for your connectivity needs.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
