| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09185505923 |
| Color: | Gray |
| Series: | SEK Standard |
| Housing Material: | Plastic |
| Number of Contacts: | 50 |
| Number of Rows: | 2 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Noble Metal Over Nickel, Tin Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 2.54 mm |
| IP Rating: | IP20 |
| Mount Angle: | Right Angle |
| Tail Length: | 2.9 mm |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 1 A |
| Voltage Rating: | 1 kV |
| SKU: | HRT09185505923 |
09185505923
Specifications
Detailed Description

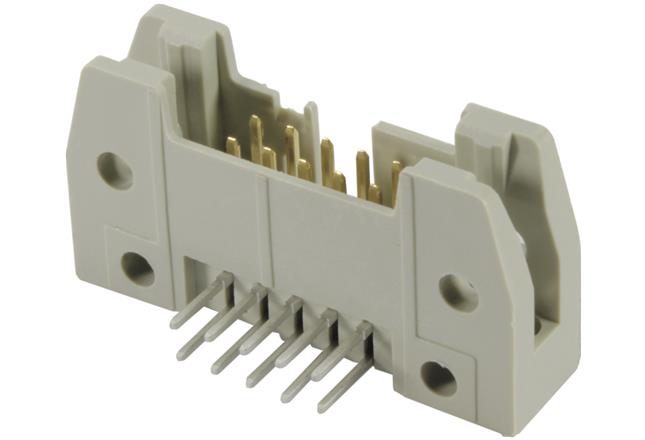

SEK Standard Connector, SKU 09185505923, is a reliable and versatile male connector designed for PCB to cable connections. Made of durable thermoplastic resin in a sleek beige color, this connector features wave soldering termination for easy installation. With a high-rated current of 1A and 50 contacts, it ensures efficient power transmission. The connector is built to last, with a temperature range of -55°C to 125°C and a flammability rating of UL 94V-0. The contact material is copper alloy with tin over nickel and noble metal plating, guaranteeing excellent conductivity and corrosion resistance. With a pitch of 2.54mm and right-angle mount angle, it offers flexibility in PCB layout. Trusted for quality and performance, this SEK connector is ideal for a wide range of applications in the electronics industry.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
