| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09185506803 |
| Pitch: | 1.27 mm, 2.54 mm |
| Gender: | Female |
| Series: | SEK |
| Wire Size: | 28 - 26 AWG |
| Housing Color: | Gray |
| Mating Cycles: | 250 cycle |
| Current Rating: | 2.5 A |
| Number of Rows: | 2 |
| Voltage Rating: | 1 kV |
| Contact Plating: | Gold Over Nickel, Tin Over Nickel |
| Contact Material: | Copper Alloy |
| Housing Material: | Plastic |
| Performance Level: | Class II |
| Number of Contacts: | 50 |
| Termination Method: | IDC |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| SKU: | HRT09185506803 |
09185506803
Specifications
Detailed Description

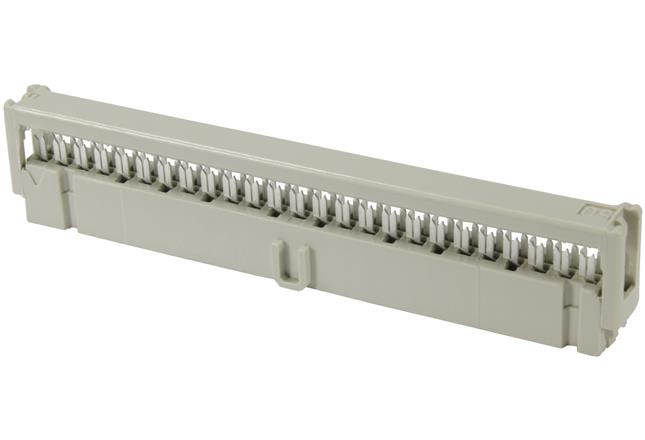

The SEK Female Connector, SKU 09185506803, offers reliable connectivity with its 50 gold-plated contacts and performance level 2 rating. Designed for versatility, this IDC ribbon cable connector features a thermoplastic resin housing in beige, suitable for a wide range of applications. With a current rating of 2.5A and a voltage rating of 1kV, it ensures efficient power transmission. Operating in temperatures ranging from -55°C to 125°C, it is ideal for both standard and demanding environments. Its gray housing color and 2.54mm pitch make it easy to integrate into existing systems. RoHS compliant and offering a durable construction with a 250-cycle mating life, the SEK Female Connector guarantees long-term performance and peace of mind.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
