| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09185506921 |
| Color: | Gray |
| Series: | SEK Standard |
| Housing Material: | Plastic |
| Number of Contacts: | 50 |
| Number of Rows: | 2 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Noble Metal Over Nickel, Tin Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 2.54 mm |
| IP Rating: | IP20 |
| Mount Angle: | Right Angle |
| Tail Length: | 4.5 mm |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 1 A |
| Voltage Rating: | 1 kV |
| SKU: | HRT09185506921 |
09185506921
Specifications
Detailed Description

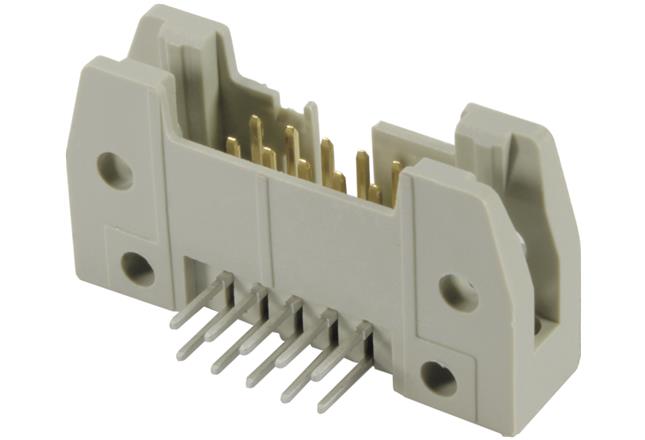

Introducing the SEK Standard Male Connector, a versatile and reliable component for your PCB to cable connections. With a durable thermoplastic resin (PBT) construction in an elegant beige color, this connector ensures secure and efficient performance. Featuring wave soldering termination and 50 copper alloy contacts with tin over nickel plating, it guarantees excellent conductivity. With a rated current of 1A and a voltage rating of 1kV, it meets the demands of various applications. The connector's IP20 rating and UL 94V-0 flammability rating ensure safety in operation. Designed for ease of use, it has a right-angle mount angle and a tail length of 4.5mm, making it suitable for compact spaces. Trust in the SEK Standard Male Connector for seamless connectivity in your projects.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
