| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09185507913 |
| Color: | Gray |
| Series: | SEK Standard |
| Housing Material: | Plastic |
| Number of Contacts: | 50 |
| Number of Rows: | 2 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Noble Metal Over Nickel, Tin Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 2.54 mm |
| IP Rating: | IP20 |
| Mount Angle: | Right Angle |
| Tail Length: | 2.9 mm |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 1 A |
| Voltage Rating: | 1 kV |
| SKU: | HRT09185507913 |
09185507913
Specifications
Detailed Description

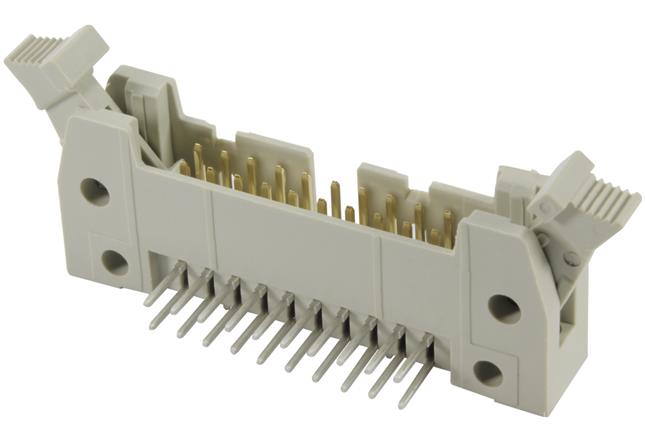

SEK, Standard, Connector; Male connector; Thermoplastic resin (PBT), Beige; PCB to cable; Wave soldering termination; Rated current: 1A; Contacts: 50. Gray in color, part of the SEK Standard series, this connector features a housing made of durable plastic with 50 contacts arranged in two rows. Solder termination method with contacts crafted from Copper Alloy and plated with Tin Over Nickel, Noble Metal Over Nickel. Operating temperature ranging from -55 °C to 125 °C, suitable for a variety of environments. With a pitch of 2.54 mm and IP20 rating, it ensures reliable connectivity. Designed for right-angle mounting, it has a tail length of 2.9 mm and UL 94V-0 flammability rating, meeting safety standards. With a current rating of 1 A and voltage rating of 1 kV, it is ideal for use in high-performance applications. A versatile choice for PCB connections, offering quality and durability.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
