| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09185606324 |
| Color: | Gray |
| Series: | SEK Low-profile |
| Gender: | Male |
| Housing Material: | Plastic |
| Number of Contacts: | 60 |
| Number of Rows: | 2 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Noble Metal Over Nickel, Tin Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 2.54 mm |
| IP Rating: | IP20 |
| Mount Angle: | Straight |
| Tail Length: | 2.9 mm |
| Mating Cycles: | 250 cycle |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 1 A |
| Voltage Rating: | 1 kV |
| SKU: | HRT09185606324 |
09185606324
Specifications
Detailed Description

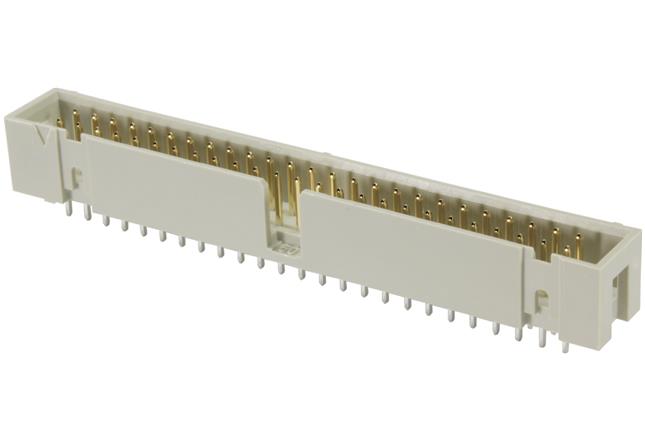

The SEK Low-profile Connector ( 09185606324) offers reliable connectivity with its male connector design and thermoplastic resin (PBT) construction in a sleek beige finish. Perfect for PCB to cable applications, it features a wave soldering termination method and can handle a rated current of 1A. With 60 contacts spread across 2 rows, it ensures efficient signal transmission. The copper alloy contacts with tin over nickel plating guarantee durability and optimal conductivity. Operating in a wide temperature range from -55°C to 125°C, it is suitable for various environments. RoHS compliant and UL 94V-0 rated for safety, this connector is ideal for high-quality board-to-board PCB connections.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
