| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09185606903 |
| Color: | Gray |
| Series: | SEK Standard |
| Housing Material: | Plastic |
| Number of Contacts: | 60 |
| Number of Rows: | 2 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Noble Metal Over Nickel, Tin Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 2.54 mm |
| IP Rating: | IP20 |
| Mount Angle: | Right Angle |
| Tail Length: | 2.9 mm |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 1 A |
| Voltage Rating: | 1 kV |
| SKU: | HRT09185606903 |
09185606903
Specifications
Detailed Description

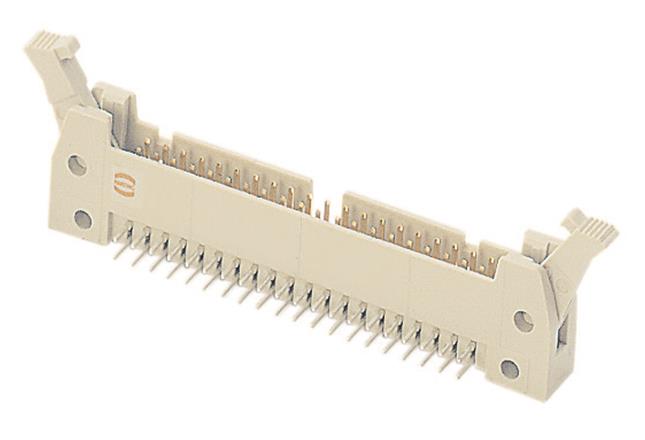

SEK Standard Connector is a reliable and durable male connector designed for seamless PCB to cable connections. Crafted from high-quality thermoplastic resin (PBT) in a sleek beige hue, this connector boasts a wave soldering termination method for effortless installation. With a rated current of 1A, it features 60 contacts in 2 rows, each made of sturdy copper alloy with tin over nickel plating for enhanced conductivity. Operating efficiently in temperatures ranging from -55°C to 125°C, this connector ensures optimal performance in various environments. Its 2.54mm pitch, right angle mount angle, and 2.9mm tail length make it versatile for a wide range of applications. With IP20 rating and UL 94V-0 flammability compliance, it guarantees safety and reliability. RoHS compliant and rated for 1kV, the SEK Standard Connector is the perfect choice for your connectivity needs.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
