| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09185606913 |
| Color: | Gray |
| Series: | SEK Standard |
| Housing Material: | Plastic |
| Number of Contacts: | 60 |
| Number of Rows: | 2 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Noble Metal Over Nickel, Tin Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 2.54 mm |
| IP Rating: | IP20 |
| Mount Angle: | Right Angle |
| Tail Length: | 2.9 mm |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 1 A |
| Voltage Rating: | 1 kV |
| SKU: | HRT09185606913 |

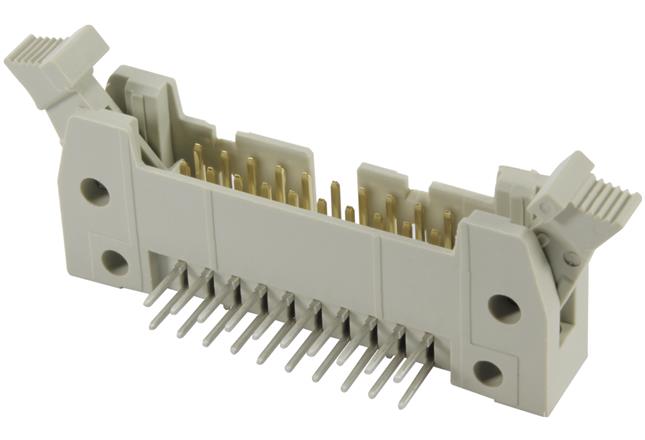

09185606913
Specifications
Detailed Description
The SEK Standard Male Connector is a reliable and efficient solution for PCB to cable connections. Constructed with durable thermoplastic resin (PBT) in a sleek beige finish, this connector is designed for wave soldering termination, ensuring a secure and long-lasting bond. With 60 contacts and a rated current of 1A, it offers ample connectivity for various applications. The gray color and right-angle mount angle make for easy identification and installation. Meeting stringent safety standards with UL 94V-0 flammability rating and IP20 protection, this connector guarantees reliable performance even in harsh environments. Its copper alloy contacts with tin over nickel plating ensure optimal conductivity and corrosion resistance. Suitable for high-density PCB layouts, the SEK Standard Male Connector is a versatile choice for demanding electronic projects.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
