| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09185645322 |
| Color: | Gray |
| Series: | SEK Low-profile |
| Gender: | Male |
| Housing Material: | Plastic |
| Number of Contacts: | 64 |
| Number of Rows: | 2 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Noble Metal Over Nickel, Tin Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 2.54 mm |
| IP Rating: | IP20 |
| Mount Angle: | Straight |
| Tail Length: | 4.5 mm |
| Mating Cycles: | 250 cycle |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 1 A |
| Voltage Rating: | 1 kV |
| SKU: | HRT09185645322 |
09185645322
Specifications
Detailed Description

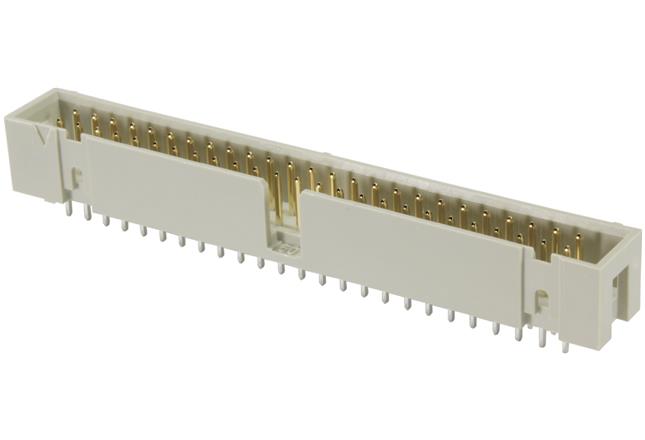

SEK Low-profile Connector, SKU 09185645322, is a male connector designed for seamless PCB to cable connections. Made of durable thermoplastic resin (PBT) in a beige hue, this connector ensures reliable performance. With 64 contacts in 2 rows and a 2.54mm pitch, it offers secure connectivity. The wave soldering termination method guarantees easy installation, while the copper alloy contacts with tin over nickel plating ensure optimal conductivity. Operating at temperatures ranging from -55°C to 125°C, this connector is suitable for various environments. Rated for 1A current and 1kV voltage, it meets high industry standards. With an IP20 rating and UL 94V-0 flammability rating, it prioritizes safety. Boasting a straight mount angle and 4.5mm tail length, it suits diverse applications. With a lifespan of 250 mating cycles, this connector is a dependable choice for board to board connections.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
