| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09185646324 |
| Color: | Gray |
| Series: | SEK Low-profile |
| Gender: | Male |
| Housing Material: | Plastic |
| Number of Contacts: | 64 |
| Number of Rows: | 2 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Noble Metal Over Nickel, Tin Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 2.54 mm |
| IP Rating: | IP20 |
| Mount Angle: | Straight |
| Tail Length: | 2.9 mm |
| Mating Cycles: | 250 cycle |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 1 A |
| Voltage Rating: | 1 kV |
| SKU: | HRT09185646324 |
09185646324
Specifications
Detailed Description

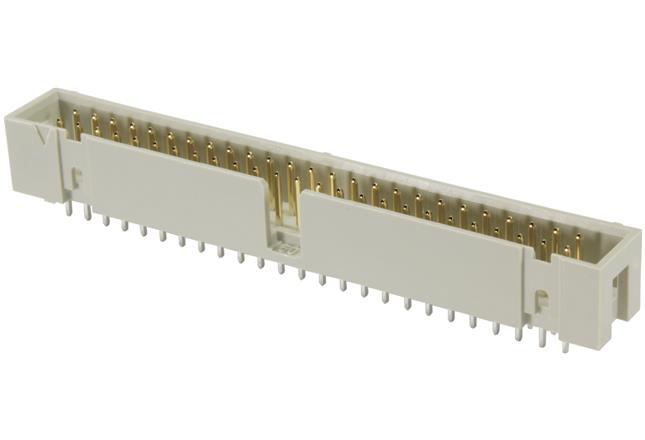

SEK Low-profile Connector ( 09185646324) is the optimal choice for seamless PCB to cable connections. This male connector, crafted from durable thermoplastic resin (PBT) in a sleek beige finish, guarantees reliable performance. With 64 contacts arranged in 2 rows and a pitch of 2.54mm, it offers efficient signal transmission. The wave soldering termination method ensures easy assembly, while the straight mount angle and 2.9mm tail length provide versatility in installation. Rated for 1A current and 1kV voltage, with a wide operating temperature range from -55°C to 125°C, it's suitable for various environments. Meeting IP20 ingress protection and UL 94V-0 flammability standards, this connector prioritizes safety. Whether in industrial machinery, telecommunications, or automotive applications, the SEK connector excels in performance and durability.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
