| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09185647323 |
| Color: | Gray |
| Series: | SEK Low-profile |
| Gender: | Male |
| Housing Material: | Plastic |
| Number of Contacts: | 64 |
| Number of Rows: | 2 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Noble Metal Over Nickel, Tin Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 2.54 mm |
| IP Rating: | IP20 |
| Mount Angle: | Right Angle |
| Tail Length: | 2.9 mm |
| Mating Cycles: | 50 cycle |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 1 A |
| Voltage Rating: | 1 kV |
| SKU: | HRT09185647323 |
09185647323
Specifications
Detailed Description

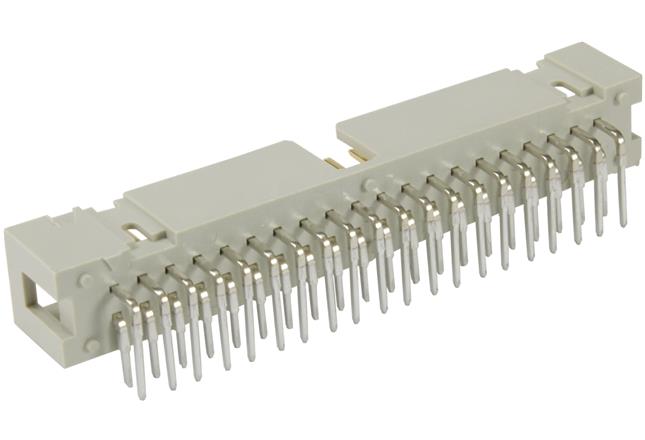

Introducing the SEK Low-profile Connector, perfect for PCB to cable connections with its male connector design. Made of durable thermoplastic resin (PBT) in a sleek beige color, this connector is essential for your electronic assembly needs. With wave soldering termination and a rated current of 1A, it ensures reliable performance. The connector features 64 contacts in 2 rows, with a pitch of 2.54mm for easy installation. Contact material is copper alloy with tin over nickel and noble metal over nickel plating, guaranteeing excellent conductivity. Operating temperature ranges from -55°C to 125°C, making it suitable for diverse environments. With an IP20 rating and UL 94V-0 flammability rating, it meets stringent safety standards. Ideal for board to board PCB connections, this SEK connector is a must-have in your electronic components arsenal.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
