| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09185647923 |
| Color: | Gray |
| Pitch: | 2.54 mm |
| Series: | SEK Standard |
| IP Rating: | IP20 |
| Mount Angle: | Right Angle |
| Tail Length: | 2.9 mm |
| Current Rating: | 1 A |
| Number of Rows: | 2 |
| Voltage Rating: | 1 kV |
| Contact Plating: | Noble Metal Over Nickel, Tin Over Nickel |
| Contact Material: | Copper Alloy |
| Housing Material: | Plastic |
| Number of Contacts: | 64 |
| Termination Method: | Solder |
| Flammability Rating: | UL 94V-0 |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| SKU: | HRT09185647923 |
09185647923
Specifications
Detailed Description

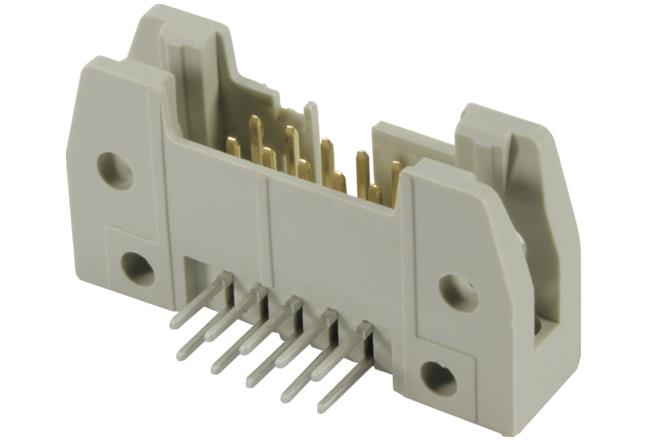

The SEK Standard Connector, SKU 09185647923, offers reliable and efficient PCB to cable connectivity with its male connector design. Constructed from durable thermoplastic resin (PBT) in a sleek beige color, this connector is perfect for a wide range of applications. Featuring wave soldering termination, it ensures secure attachment to PCBs. With a high rated current of 1A and 64 copper alloy contacts plated with tin over nickel, it guarantees optimal conductivity. Operating at temperatures ranging from -55°C to 125°C, it is suitable for use in various environments. With a pitch of 2.54mm and right-angle mount angle, it provides easy and convenient installation. UL 94V-0 rated for flammability, it meets stringent safety standards. A versatile and essential component in any electronic assembly, the SEK Standard Connector is a reliable choice for professionals in the field.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
