| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09195066829 |
| Color: | Black |
| Series: | SEK Mezzanine |
| Gender: | Female |
| Housing Material: | Liquid Crystal Polymer |
| Number of Contacts: | 6 |
| Number of Rows: | 2 |
| Termination Method: | Press-Fit |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold Over Palladium-Nickel, Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 2.54 mm |
| Mount Angle: | Straight |
| Tail Length: | 4.5 mm |
| Mating Cycles: | 250 cycle |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 1 A |
| Voltage Rating: | 1 kV |
| SKU: | HRT09195066829 |
09195066829
Specifications
Detailed Description

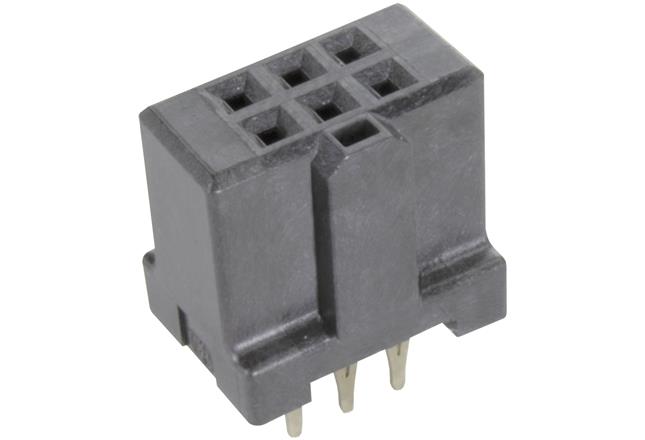

Introducing the SEK Mezzanine Black Female Connector, SKU 09195066829, designed for high-performance board-to-board PCB connections. With a durable housing made of Liquid Crystal Polymer and Press-Fit termination method, this connector ensures secure and reliable contact. Featuring 6 gold-plated copper alloy contacts in a 2-row configuration, it offers excellent conductivity with a current rating of 1A and voltage rating of 1kV. Operating efficiently in temperatures ranging from -55°C to 125°C, it is suitable for a wide range of applications. With a pitch of 2.54mm and straight mount angle, it allows for easy installation on PCBs. UL 94V-0 rated for flammability, it guarantees safety in use. With a mating cycle of 250, it ensures long-lasting performance, making it ideal for demanding industrial and commercial environments. Upgrade your connectivity with the SEK Mezzanine Black Female Connector, the perfect choice for your PCB assembly needs.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
