| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09195066914 |
| Color: | Beige |
| Pitch: | 2.54 mm |
| Series: | SEK Standard |
| IP Rating: | IP20 |
| Mount Angle: | Straight |
| Tail Length: | 2.9 mm |
| Current Rating: | 1 A |
| Number of Rows: | 2 |
| Voltage Rating: | 1 kV |
| Contact Plating: | Noble Metal Over Nickel, Tin Over Nickel |
| Contact Material: | Copper Alloy |
| Housing Material: | Plastic |
| Number of Contacts: | 6 |
| Termination Method: | Solder |
| Flammability Rating: | UL 94V-0 |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| SKU: | HRT09195066914 |
09195066914
Specifications
Detailed Description

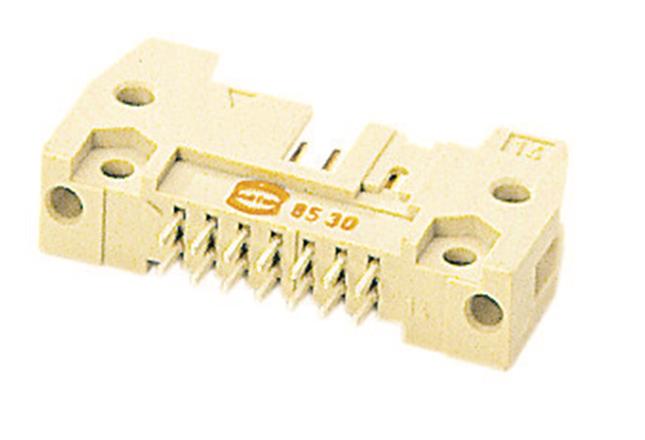

SEK Standard Male Connector is a reliable and versatile component designed for seamless PCB to cable connections. Made from durable Thermoplastic resin (PCT) in a sleek Beige hue, this connector features a reflow soldering termination (THR/SMC) method, ensuring secure and efficient assembly. With a current rating of 1A, it offers dependable performance in various applications. This connector boasts a compact design with 6 contacts in 2 rows, suitable for high-density PCB layouts. Its Copper Alloy contacts with Tin Over Nickel plating guarantee excellent conductivity and corrosion resistance. Operating in temperatures ranging from -55°C to 125°C, it is suitable for diverse environmental conditions. The SEK Standard Male Connector, with a pitch of 2.54mm, IP20 rating, and UL 94V-0 flammability rating, meets stringent quality standards for reliable connectivity. Perfect for use in industrial, automotive, and consumer electronics, this connector is a crucial component for your connectivity needs.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
