| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09195106324740 |
| Color: | Beige |
| Series: | SEK Low-profile |
| Gender: | Male |
| Housing Material: | Plastic |
| Number of Contacts: | 10 |
| Number of Rows: | 2 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Noble Metal Over Nickel, Tin Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 2.54 mm |
| IP Rating: | IP20 |
| Mount Angle: | Straight |
| Tail Length: | 2.9 mm |
| Mating Cycles: | 250 cycle |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 1 A |
| Voltage Rating: | 1 kV |
| SKU: | HRT09195106324740 |
09195106324740
Specifications
Detailed Description

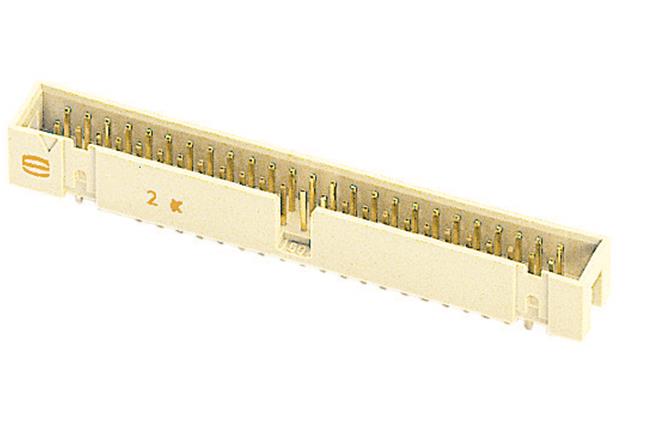

SEK Low-profile Connector, SKU 09195106324740, offers reliable connectivity in a beige thermoplastic resin housing. This male connector, designed for PCB to cable applications, features reflow soldering termination for efficient assembly. With a rated current of 1A, it ensures safe and stable power transmission. The 10 contacts in 2 rows are made of copper alloy with tin over nickel and noble metal plating for enhanced durability. Operating temperature ranges from -55°C to 125°C, making it suitable for various environments. With a pitch of 2.54mm and straight mount angle, it facilitates easy installation. This UL 94V-0 rated connector guarantees high performance and safety standards, ideal for board to board PCB connections in diverse industries.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
