| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09195106824741 |
| Color: | Black |
| Series: | SEK Mezzanine |
| Gender: | Female |
| Housing Material: | Liquid Crystal Polymer |
| Number of Contacts: | 10 |
| Number of Rows: | 2 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold Over Palladium-Nickel, Tin Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 2.54 mm |
| Mount Angle: | Straight |
| Tail Length: | 2.9 mm |
| Mating Cycles: | 250 cycle |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 1 A |
| Voltage Rating: | 1 kV |
| SKU: | HRT09195106824741 |
09195106824741
Specifications
Detailed Description

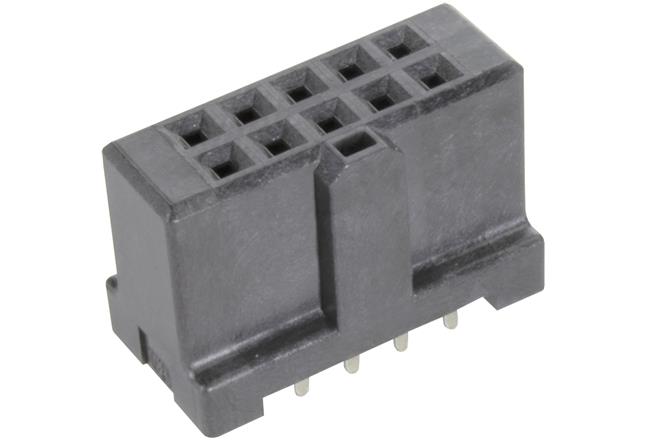

Introducing the SEK Mezzanine Black Female Connector, featuring a sleek design with a liquid crystal polymer housing for durability. With 10 gold-plated contacts in 2 rows, this connector ensures reliable signal transmission. Solder termination and a straight mount angle make for easy installation on PCBs. Operating in a wide temperature range from -55°C to 125°C, it is suitable for diverse applications. With a flammability rating of UL 94V-0 and a current/voltage rating of 1A/1kV, it guarantees safety and performance. Ideal for board-to-board connections, this connector is a high-quality solution for your electronic projects.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
