| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09195106829 |
| Color: | Black |
| Series: | SEK Mezzanine |
| Gender: | Female |
| Housing Material: | Liquid Crystal Polymer |
| Number of Contacts: | 10 |
| Number of Rows: | 2 |
| Termination Method: | Press-Fit |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold Over Palladium-Nickel, Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 2.54 mm |
| Mount Angle: | Straight |
| Tail Length: | 4.5 mm |
| Mating Cycles: | 250 cycle |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 1 A |
| Voltage Rating: | 1 kV |
| SKU: | HRT09195106829 |
09195106829
Specifications
Detailed Description

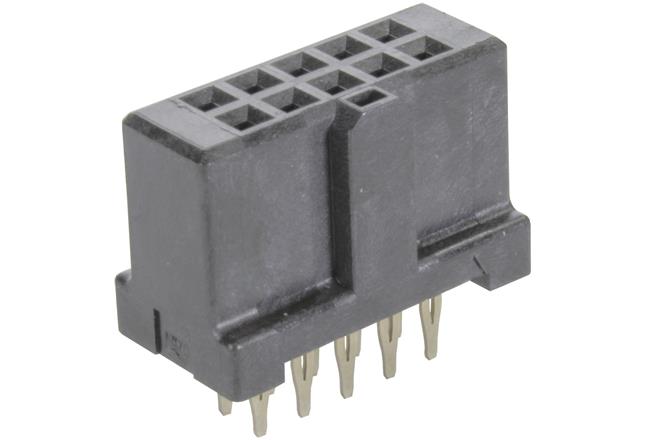

Introducing the SEK Mezzanine Female Connector, SKU 09195106829, in sleek Black. Crafted with high-quality Liquid Crystal Polymer housing, this connector boasts a robust construction perfect for demanding applications. With 10 gold-plated Copper Alloy contacts arranged in 2 rows, it ensures reliable signal transmission. Featuring a Press-Fit termination method and a pitch of 2.54mm, it offers easy installation onto PCBs. Designed for durability, it can withstand temperatures ranging from -55°C to 125°C. With a 1A current rating and 1kV voltage rating, it guarantees efficient power delivery. Ideal for Board-to-Board connections, this connector is UL 94V-0 rated for safety and reliability. With a mating cycle of 250 and straight mount angle, it is perfect for high-performance systems. Elevate your connectivity with the SEK Mezzanine Female Connector, the essential choice for your electronic projects.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
