09195107913

HRT09195107913
Heilind Number:HRT09195107913
Manufacturer:HARTING
Manufacturer Number:09195107913
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

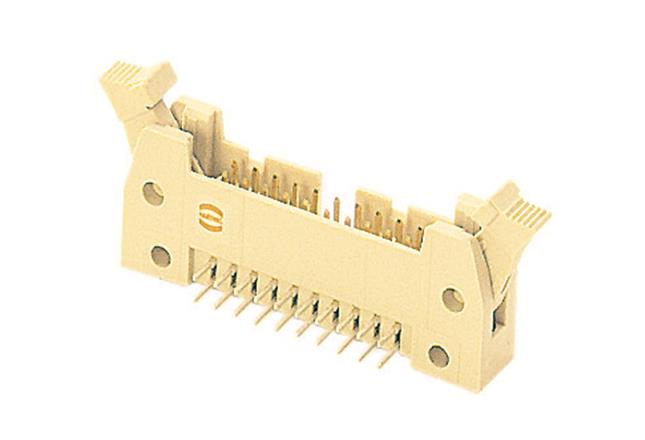

SEK, Standard, Connector; Male connector; Thermoplastic resin (PCT), Beige; PCB to cable; Reflow soldering termination (THR/SMC); Rated current: 1A

More >>

Specifications

AttributeValue
Product Category:
Board To Board PCB Connectors Mezzanine & Board Stacking Connectors
Manufacturer:HARTING
Manufacturer Part Number:HARTING 09195107913
Color:Beige
Series:SEK Standard
Gender:Male
Housing Material:Plastic
Number of Contacts:10
Number of Rows:2
Termination Method:Solder
Contact Material:Copper Alloy
Contact Plating:Noble Metal Over Nickel, Tin Over Nickel
Maximum Operating Temperature:125 °C
Minimum Operating Temperature:-55 °C
Pitch:2.54 mm
Mount Angle:Right Angle
Tail Length:2.9 mm
Mating Cycles:50 cycle
Flammability Rating:UL 94V-0
Current Rating:1 A
Voltage Rating:500 V
Part Aliases:
SKU:HRT09195107913

Detailed Description

SEK Standard Male Connector ( 09195107913) is a vital component for seamless PCB to cable connections. Constructed with durable thermoplastic resin (PCT) in a sleek beige hue, this connector ensures reliable performance even in demanding environments. Featuring a solder reflow termination method, it offers easy and secure installation. With a rated current of 1A and a maximum operating temperature of 125°C, it guarantees efficient power transmission. Its 10 contacts in 2 rows, each plated with tin over nickel and noble metal over nickel, ensure optimal conductivity. Meeting UL 94V-0 flammability rating standards, this connector prioritizes safety. Perfect for board-to-board PCB connections, it is a must-have in any electronics assembly.
