| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09195146324 |
| Color: | Beige |
| Series: | SEK Low-profile |
| Gender: | Male |
| Housing Material: | Plastic |
| Number of Contacts: | 14 |
| Number of Rows: | 2 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Noble Metal Over Nickel, Tin Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 2.54 mm |
| IP Rating: | IP20 |
| Mount Angle: | Straight |
| Tail Length: | 2.9 mm |
| Mating Cycles: | 250 cycle |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 1 A |
| Voltage Rating: | 1 kV |
| SKU: | HRT09195146324 |
09195146324
Specifications
Detailed Description

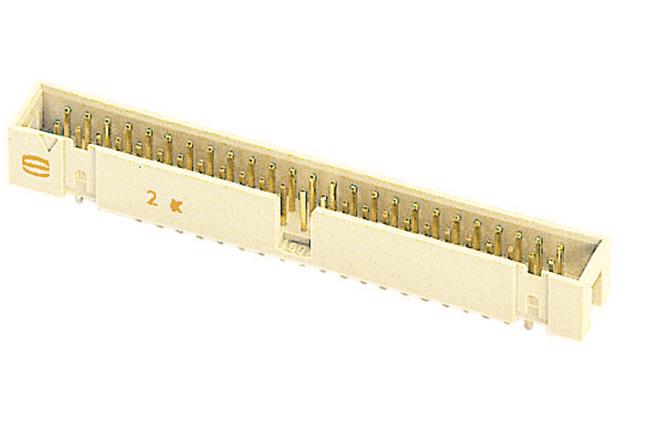

Introducing the SEK Low-profile Connector, a male connector designed for seamless PCB to cable connections. Crafted from durable thermoplastic resin in a sleek beige hue, this connector ensures reliable performance in a range of applications. With a low profile design and reflow soldering termination, it offers easy integration and secure attachment. Featuring 14 contacts in 2 rows, each made of copper alloy with tin over nickel plating, it guarantees efficient conductivity. Operating between -55°C to 125°C, it's suitable for use in diverse environments. With a 2.54mm pitch, IP20 rating, and UL 94V-0 flammability rating, it prioritizes safety and performance. Perfect for board to board connections, this connector is a versatile and essential component for your electronic projects.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
