| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09195146824741 |
| Color: | Black |
| Series: | SEK Mezzanine |
| Gender: | Female |
| Housing Material: | Liquid Crystal Polymer |
| Number of Contacts: | 14 |
| Number of Rows: | 2 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold Over Palladium-Nickel, Tin Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 2.54 mm |
| Mount Angle: | Straight |
| Tail Length: | 2.9 mm |
| Mating Cycles: | 250 cycle |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 1 A |
| Voltage Rating: | 1 kV |
| SKU: | HRT09195146824741 |
09195146824741
Specifications
Detailed Description

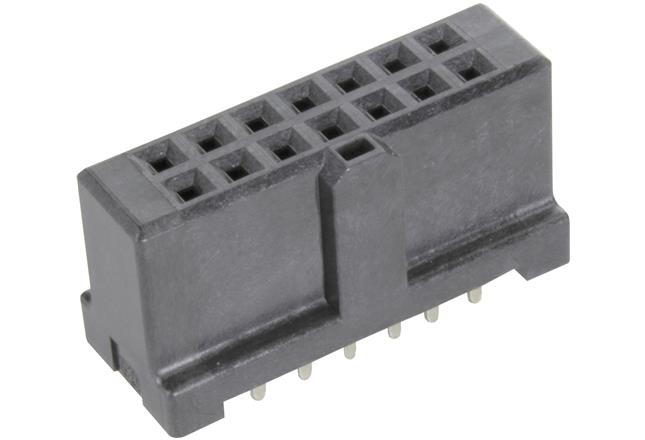

Introducing the SEK Mezzanine Black Female Connector, SKU 09195146824741. Designed for high-reliability board-to-board PCB connections, this connector boasts a liquid crystal polymer housing, ensuring durability in extreme operating temperatures ranging from -55°C to 125°C. With 14 gold-plated copper alloy contacts in a 2-row configuration, it guarantees optimal signal transmission and conductivity. The straight mount angle and 2.54mm pitch allow for easy installation, while the solder termination method ensures secure attachment. UL 94V-0 rated for flammability, and with a current rating of 1A and voltage rating of 1kV, this connector is suitable for a wide range of applications. With a mating cycle of 250, it offers long-lasting performance, making it the ideal choice for demanding environments.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
