| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09195147822 |
| Color: | Black |
| Pitch: | 2.54 mm |
| Gender: | Female |
| Series: | SEK Mezzanine |
| Mount Angle: | Straight |
| Tail Length: | 4.5 mm |
| Mating Cycles: | 50 cycle |
| Current Rating: | 1 A |
| Number of Rows: | 2 |
| Voltage Rating: | 1 kV |
| Contact Plating: | Gold Over Palladium-Nickel, Tin Over Nickel |
| Contact Material: | Copper Alloy |
| Housing Material: | Liquid Crystal Polymer |
| Number of Contacts: | 14 |
| Termination Method: | Solder |
| Flammability Rating: | UL 94V-0 |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| SKU: | HRT09195147822 |
09195147822
Specifications
Detailed Description

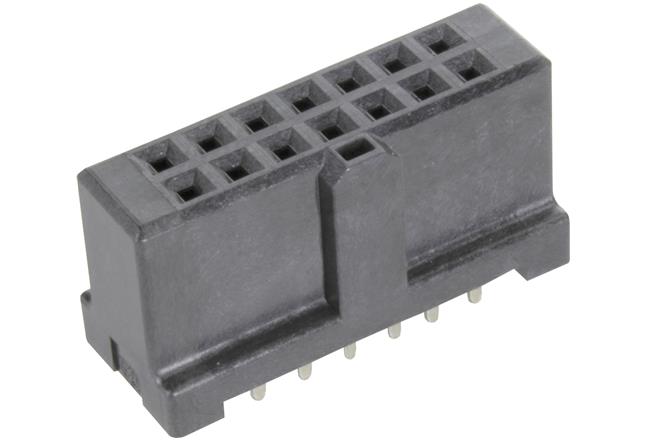

Introducing the SEK Mezzanine Female Connector, SKU 09195147822, in sleek Black. Designed for high performance, this connector features a housing made of durable Liquid Crystal Polymer, ensuring reliability in any application. With 14 gold-plated contacts in 2 rows, solder termination, and a pitch of 2.54mm, it offers seamless connectivity on PCBs. Operating flawlessly in temperatures ranging from -55°C to 125°C, it is ideal for a wide range of environments. With a current rating of 1A and voltage rating of 1kV, this connector guarantees efficient power transmission. Its UL 94V-0 flammability rating underscores its safety. Perfect for board-to-board connections, the SEK Mezzanine Female Connector is a must-have for any electronic project.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
