| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09195165903 |
| Color: | Beige |
| Series: | SEK Standard |
| Housing Material: | Plastic |
| Number of Contacts: | 16 |
| Number of Rows: | 2 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Noble Metal Over Nickel, Tin Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 2.54 mm |
| IP Rating: | IP20 |
| Mount Angle: | Right Angle |
| Tail Length: | 2.9 mm |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 1 A |
| Voltage Rating: | 1 kV |
| SKU: | HRT09195165903 |
09195165903
Specifications
Detailed Description

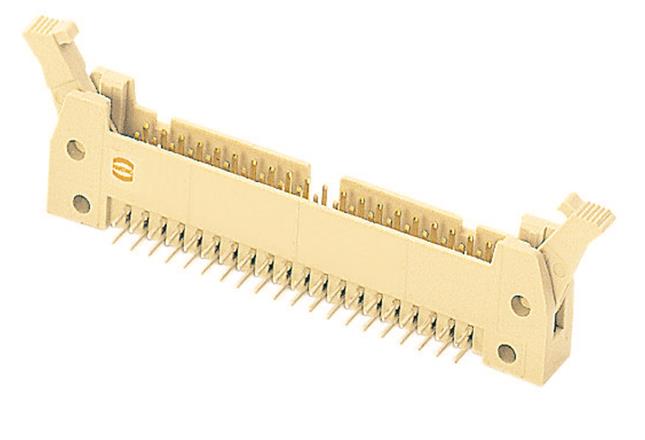

The SEK-19 SV HT MA STD ANG29 RLG beige connector, SKU 09195165903, is a reliable solution for your PCB pin header needs. With a housing made of durable plastic and copper alloy contacts plated with tin over nickel, it ensures secure and stable connections. This two-row connector features 16 contacts with a pitch of 2.54mm, suitable for various applications. Operating temperature ranging from -55°C to 125°C, it guarantees performance in extreme conditions. The right-angle mount and 2.9mm tail length make it easy to install on your PCB. With a UL 94V-0 flammability rating and IP20 protection, it meets safety standards. Rated for 1A current and 1kV voltage, it offers reliable power transmission. Perfect for high-reliability applications, this connector is a dependable choice for your projects.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
