| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09195166829 |
| Color: | Black |
| Pitch: | 2.54 mm |
| Gender: | Female |
| Series: | SEK Mezzanine |
| Mount Angle: | Straight |
| Tail Length: | 4.5 mm |
| Mating Cycles: | 250 cycle |
| Current Rating: | 1 A |
| Number of Rows: | 2 |
| Voltage Rating: | 1 kV |
| Contact Plating: | Gold Over Palladium-Nickel, Nickel |
| Contact Material: | Copper Alloy |
| Housing Material: | Liquid Crystal Polymer |
| Number of Contacts: | 16 |
| Termination Method: | Press-Fit |
| Flammability Rating: | UL 94V-0 |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| SKU: | HRT09195166829 |
09195166829
Specifications
Detailed Description

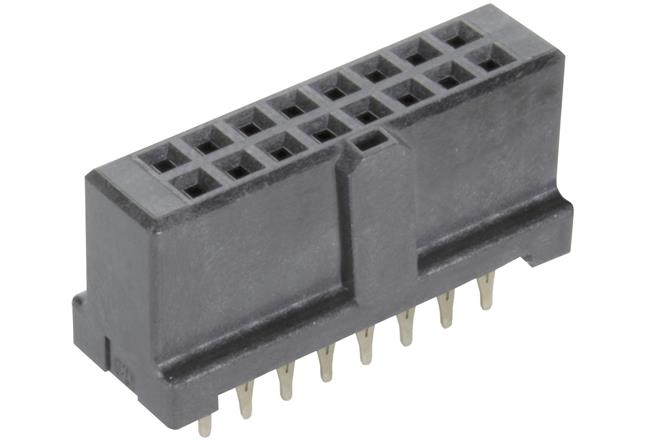

Introducing the SEK Mezzanine Black Female Connector, 09195166829. Engineered for high-reliability board-to-board PCB connections, this connector features a durable Liquid Crystal Polymer housing and 16 gold-plated contacts for optimal signal transmission. With a straight mount angle and press-fit termination method, installation is quick and secure. Operating efficiently in temperatures ranging from -55°C to 125°C, it is ideal for a wide range of applications. Rated for 1A current and 1kV voltage, this connector ensures reliable power delivery. Meeting UL 94V-0 flammability standards, it guarantees safety in any environment. Trust in the quality and performance of the SEK Mezzanine Connector for your connectivity needs.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
