| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09195167822 |
| Color: | Black |
| Series: | SEK Mezzanine |
| Gender: | Female |
| Housing Material: | Liquid Crystal Polymer |
| Number of Contacts: | 16 |
| Number of Rows: | 2 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold Over Palladium-Nickel, Tin Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 2.54 mm |
| Mount Angle: | Straight |
| Tail Length: | 4.5 mm |
| Mating Cycles: | 50 cycle |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 1 A |
| Voltage Rating: | 1 kV |
| SKU: | HRT09195167822 |
09195167822
Specifications
Detailed Description

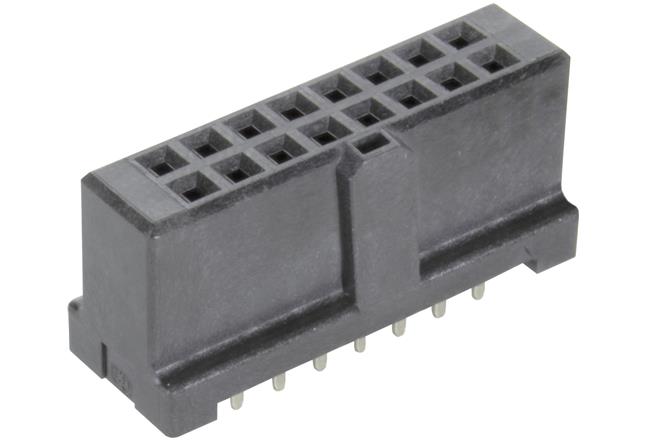

Introducing the SEK Mezzanine Black Connector, SKU 09195167822, designed for high-performance connectivity in board-to-board PCB applications. Crafted for durability, this female connector features a housing made of Liquid Crystal Polymer and 16 gold-plated contacts for reliable signal transmission. With a solder termination method and a straight mount angle, it offers easy and secure installation. Operating in a wide temperature range from -55°C to 125°C, it ensures stable performance in various environments. Rated for 1A current and 1kV voltage, it guarantees safe and efficient power delivery. With a pitch of 2.54mm and a tail length of 4.5mm, it provides precise and versatile connectivity. Certified with UL 94V-0 flammability rating, it meets stringent safety standards. Ideal for demanding applications, this connector is a crucial component for high-reliability electronic systems.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
