09195205324

HRT09195205324
Heilind Number:HRT09195205324
Manufacturer:HARTING
Manufacturer Number:09195205324
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

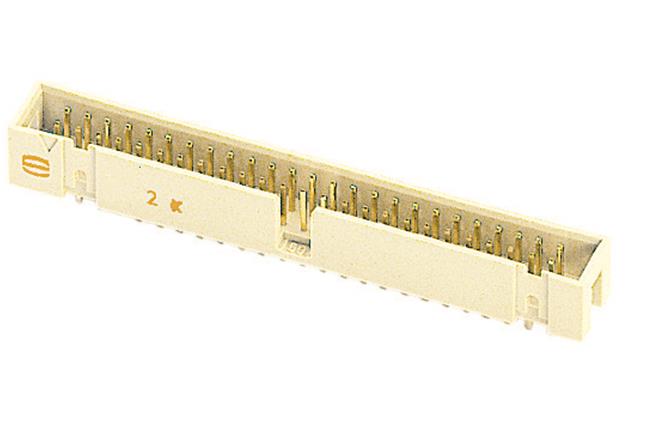

SEK, Low-profile, Connector; Male connector; Thermoplastic resin (PCT), Beige; PCB to cable; Reflow soldering termination (THR/SMC); Rated current: 1A

More >>

Specifications

AttributeValue
Product Category:
Board To Board PCB Connectors Mezzanine & Board Stacking Connectors
Manufacturer:HARTING
Manufacturer Part Number:HARTING 09195205324
Color:Beige
Series:SEK Low-profile
Gender:Male
Housing Material:Plastic
Number of Contacts:20
Number of Rows:2
Termination Method:Solder
Contact Material:Copper Alloy
Contact Plating:Noble Metal Over Nickel, Tin Over Nickel
Maximum Operating Temperature:125 °C
Minimum Operating Temperature:-55 °C
Pitch:2.54 mm
Mount Angle:Straight
Tail Length:2.9 mm
Mating Cycles:250 cycle
Flammability Rating:UL 94V-0
Current Rating:1 A
Voltage Rating:1 kV
Part Aliases:
SKU:HRT09195205324

Detailed Description

Introducing the SEK Low-profile Connector, featuring a durable thermoplastic resin (PCT) construction in a sleek beige hue. This male connector is designed for seamless PCB to cable connections, with reflow soldering termination (THR/SMC) ensuring secure and reliable performance. With a rated current of 1A, this connector is perfect for various electronic applications. Its 20 contacts in 2 rows provide ample connectivity, while solder termination and copper alloy contacts with tin over nickel plating guarantee optimal conductivity. Operating in temperatures ranging from -55°C to 125°C, it's suitable for diverse environments. With a pitch of 2.54mm and straight mount angle, installation is a breeze. Meeting UL 94V-0 flammability standards and offering a 1kV voltage rating, this connector prioritizes safety. Whether for board to board connections or mezzanine and board stacking, the SEK Connector ( 09195205324) is a reliable choice for your electronic projects.
