| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09195205923 |
| Color: | Beige |
| Pitch: | 2.54 mm |
| Series: | SEK Standard |
| IP Rating: | IP20 |
| Mount Angle: | Right Angle |
| Tail Length: | 2.9 mm |
| Current Rating: | 1 A |
| Number of Rows: | 2 |
| Voltage Rating: | 1 kV |
| Contact Plating: | Noble Metal Over Nickel, Tin Over Nickel |
| Contact Material: | Copper Alloy |
| Housing Material: | Plastic |
| Number of Contacts: | 20 |
| Termination Method: | Solder |
| Flammability Rating: | UL 94V-0 |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| SKU: | HRT09195205923 |
09195205923
Specifications
Detailed Description

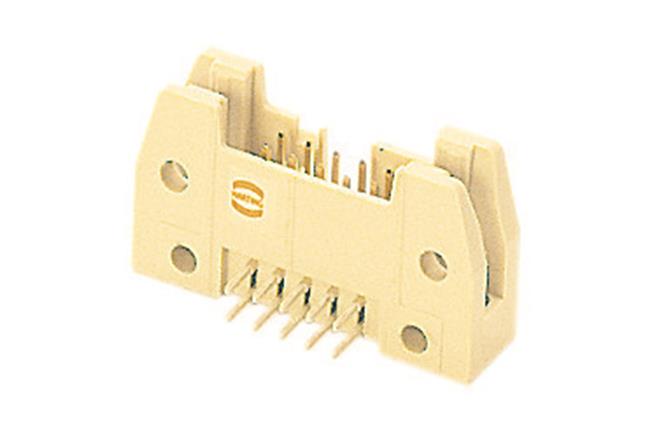

SEK Standard Connector 09195205923 is a versatile male connector designed for efficient PCB to cable connections. Constructed with durable thermoplastic resin in a sleek beige finish, it offers reliable performance in a wide range of applications. With 20 contacts spread across 2 rows, this connector ensures secure and stable connectivity. Featuring reflow soldering termination, it guarantees easy and efficient installation. The copper alloy contacts with tin over nickel plating provide excellent conductivity and corrosion resistance. With a rated current of 1A and a voltage rating of 1kV, this connector is suitable for various power and signal transmission tasks. Meeting IP20 standards for ingress protection and UL 94V-0 flammability rating, it ensures safety and reliability in operation. The SEK Standard Connector is a high-quality solution for your PCB interconnection needs.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
