| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09195206323741 |
| Color: | Black |
| Series: | SEK Low-profile |
| Gender: | Male |
| Housing Material: | Plastic |
| Number of Contacts: | 20 |
| Number of Rows: | 2 |
| Termination Method: | Solder |
| Contact Material: | Copper Alloy |
| Contact Plating: | Noble Metal Over Nickel, Tin Over Nickel |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Pitch: | 2.54 mm |
| IP Rating: | IP20 |
| Mount Angle: | Right Angle |
| Tail Length: | 2.9 mm |
| Mating Cycles: | 250 cycle |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 1 A |
| Voltage Rating: | 1 kV |
| SKU: | HRT09195206323741 |
09195206323741
Specifications
Detailed Description

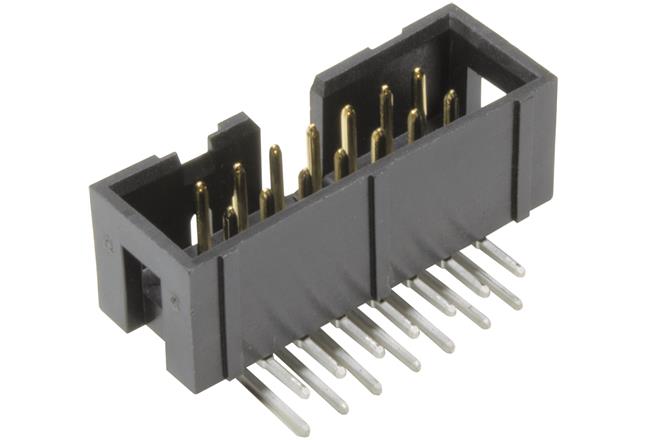

Introducing the SEK/IDC THR/SMC LOW PROFILE AN Connector, a sleek and high-performance solution for your PCB connectivity needs. With its black plastic housing and durable construction, this connector is designed for reliability in demanding environments. Featuring 20 contacts in 2 rows, it offers efficient signal transmission. The solder termination method ensures secure and stable connections, while the copper alloy contact material with tin over nickel and noble metal plating guarantees excellent conductivity and corrosion resistance. Operating smoothly in temperatures ranging from -55°C to 125°C, it is suitable for a wide range of applications. With an IP20 rating for dust and moisture protection, along with UL 94V-0 flammability rating, it prioritizes safety. Ideal for board-to-board and mezzanine connections, this connector is a dependable choice for your electronic designs.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
