| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | HARTING |
| Manufacturer Part Number: | HARTING 09195206904 |
| Color: | Beige |
| Pitch: | 2.54 mm |
| Series: | SEK Standard |
| IP Rating: | IP20 |
| Mount Angle: | Straight |
| Tail Length: | 2.9 mm |
| Current Rating: | 1 A |
| Number of Rows: | 2 |
| Voltage Rating: | 1 kV |
| Contact Plating: | Noble Metal Over Nickel, Tin Over Nickel |
| Contact Material: | Copper Alloy |
| Housing Material: | Plastic |
| Number of Contacts: | 20 |
| Termination Method: | Solder |
| Flammability Rating: | UL 94V-0 |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| SKU: | HRT09195206904 |
09195206904
Specifications
Detailed Description

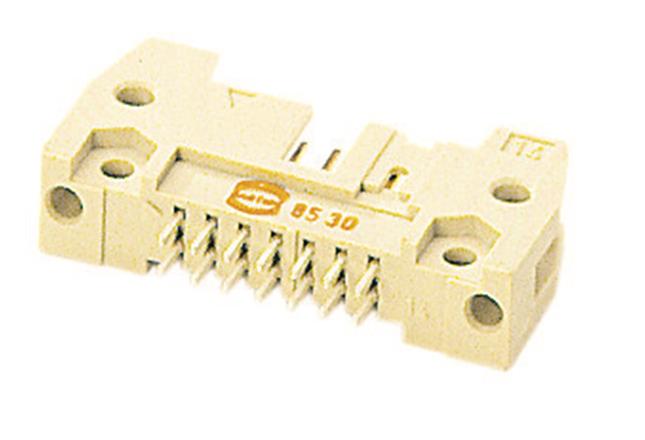

SEK Standard Connector is a reliable and efficient solution for PCB to cable connections. This male connector, made of durable thermoplastic resin in a sleek beige finish, features reflow soldering termination for secure and hassle-free installation. With a high current rating of 1A, it ensures optimal performance in various applications. The 20 contacts in 2 rows provide ample connectivity options, while the copper alloy contacts with tin over nickel plating guarantee excellent conductivity. Operating smoothly in temperatures ranging from -55°C to 125°C, and boasting a flammability rating of UL 94V-0, this connector prioritizes safety and durability. Its IP20 rating further enhances its reliability. Perfect for use in demanding environments, the SEK Standard Connector offers a pitch of 2.54mm, straight mount angle, and a tail length of 2.9mm for easy integration into your PCB designs. Trust in its quality and performance for seamless connectivity solutions.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Documents & Media
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
